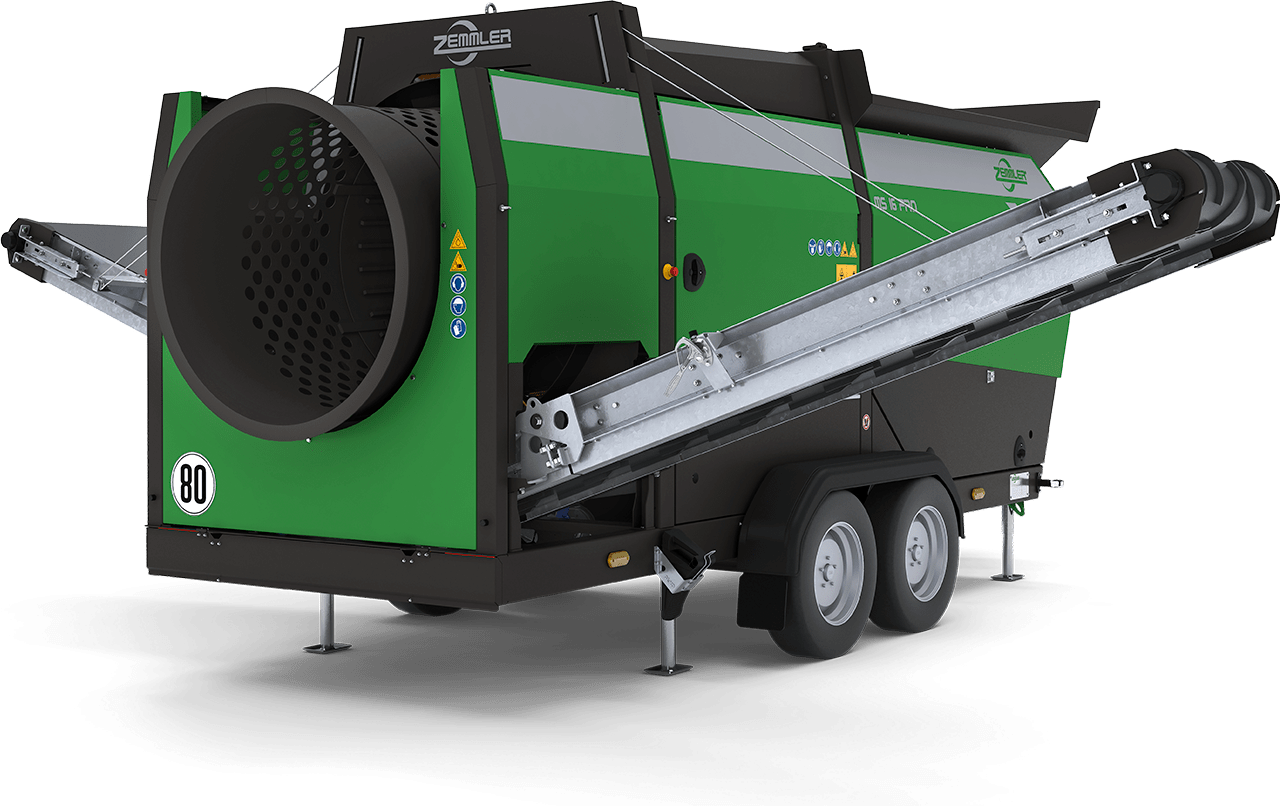

Multi Screen^® MS 16 Pro

Our smart solution

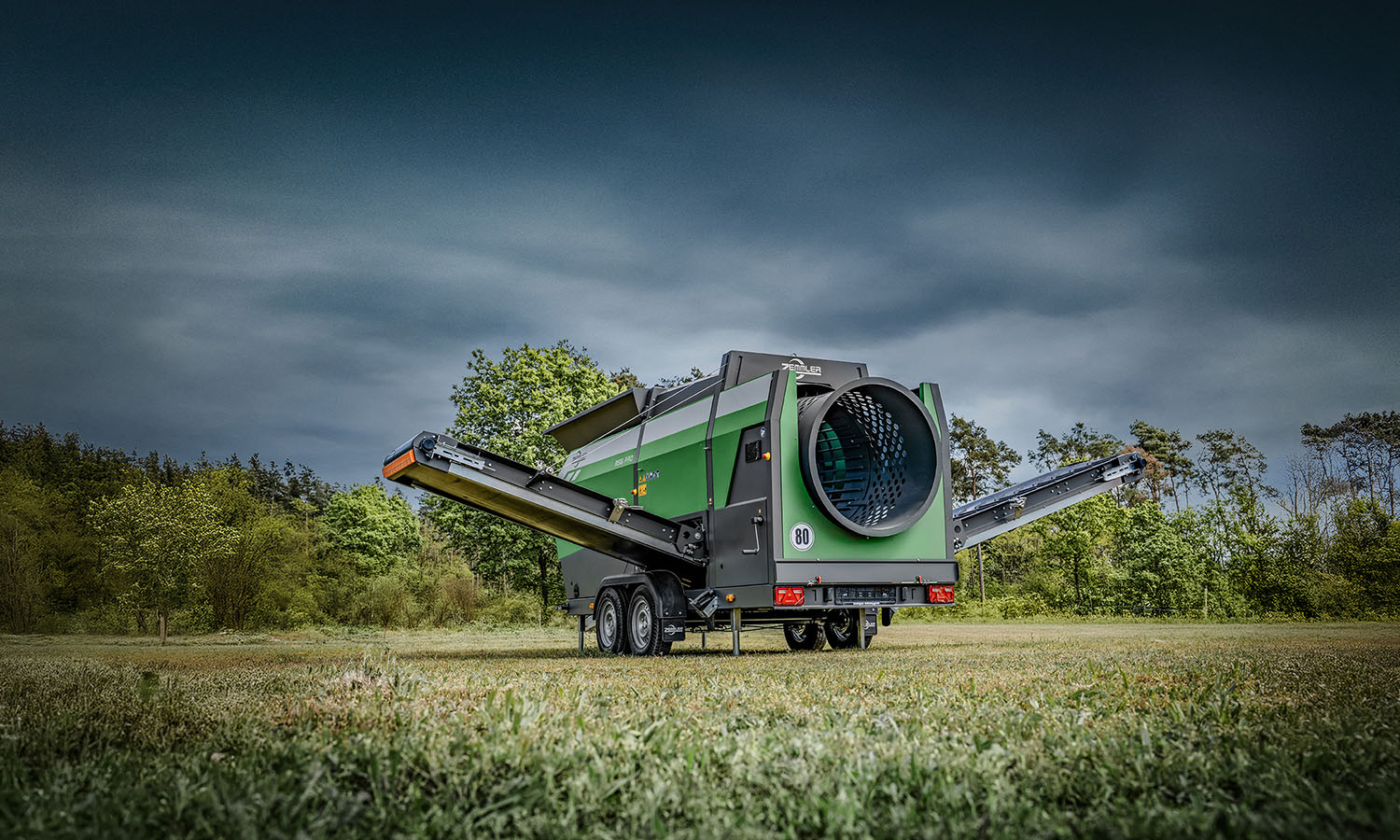

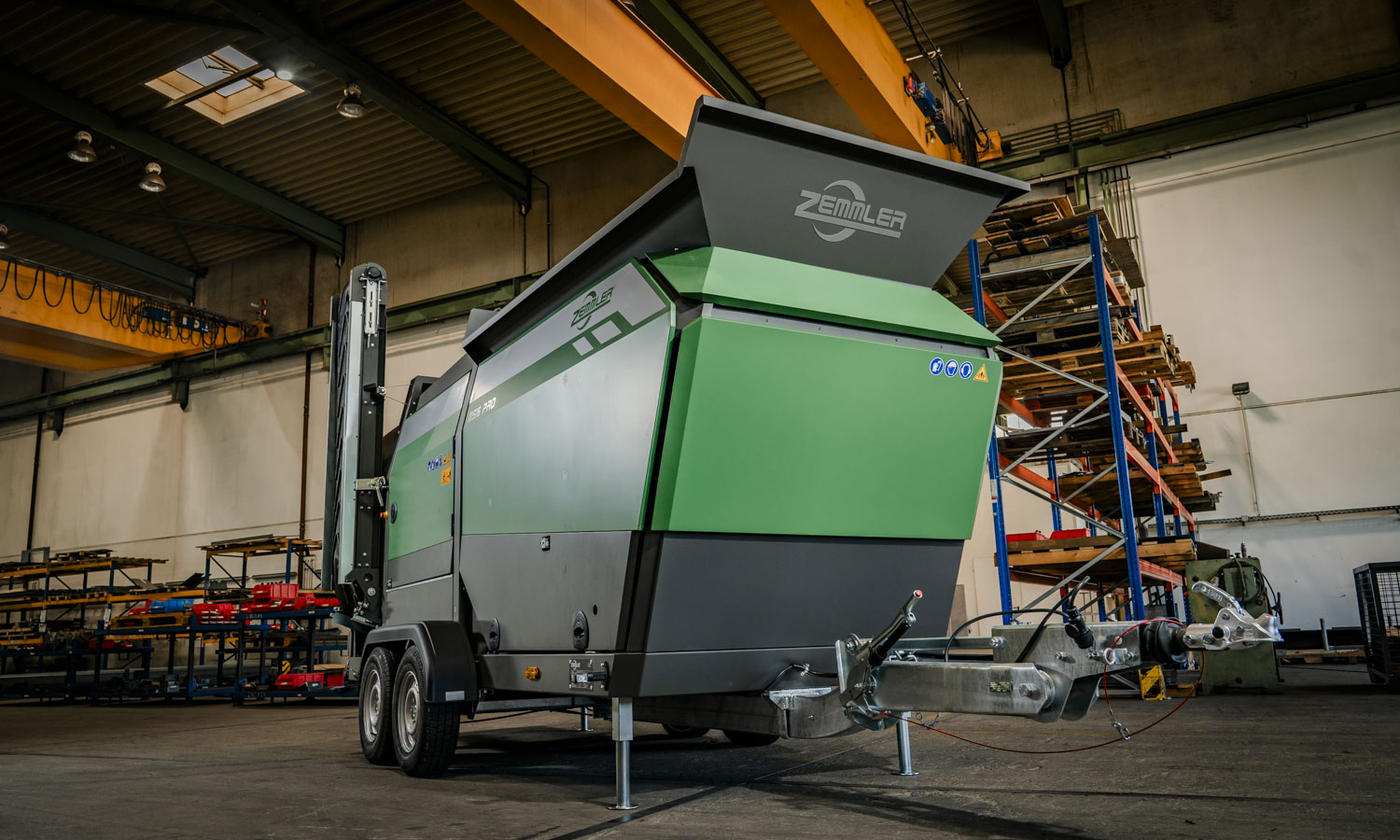

The Zemmler MULTI SCREEN^® MS 16 Pro is designed for garden & landscaping use.

With a maximum weight of 3.5 tonnes, the machine can be easily transported in SUVs and vans. It delivers three fractions in a single operation and is characterised by a fully electrical, low-maintenance drive.

The MS 16 Pro is also equipped with a mobile control unit and an integrated telemetry module that enables real-time monitoring and remote maintenance. All hinges and electrical elements feature a plug-and-play design, which significantly simplifies service, assembly and maintenance work, as the components can be assembled, disassembled and replaced without the need for specialised electricians.

Specialised for these requirements

Thanks to double trommel technology special applications

3.5 t
Maximum weight

Electrical drive optional diesel generator

Double trommel
technology

Full mobility
at 80 km/h

Interchangeable
wire screen

Tested
safety system

With mobile control & telemetry package included

Technical specifications

Trommel length

1,790 / 2,680 mm

Feed hopper

Volume 1.85 m³
Feed width 2,510 mm

Weight

max.

Towing device

Ball head,
towing eye Ø 40/50 mm

Trommel diameter

1,300 mm

Total screening area

11 m²

Drive

Electric (16 A),
optional diesel generator

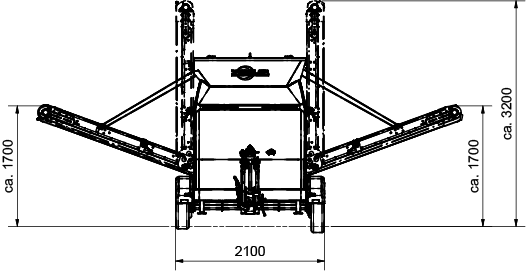

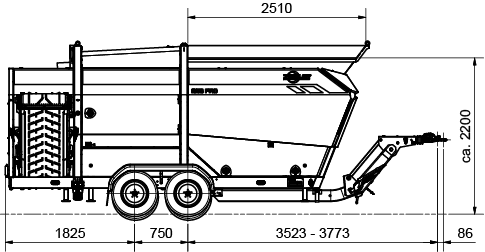

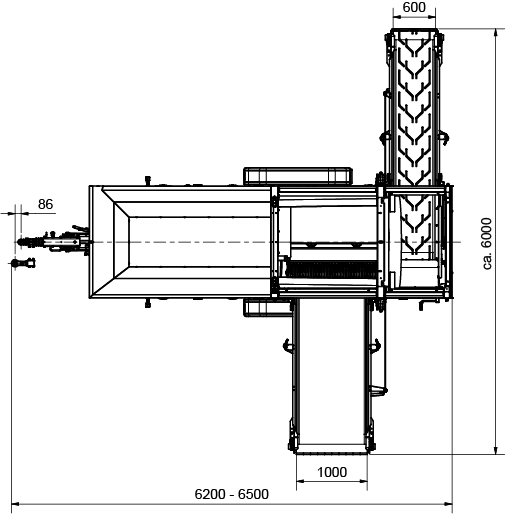

Transport measurements (LxWxH)

6,200 x 2,100 x 3,200 mm

Advantages of the MS 16 Pro at a glance

Easy to maintain

Wide-opening doors provide easy access for maintenance and inspection work.

One-man operation

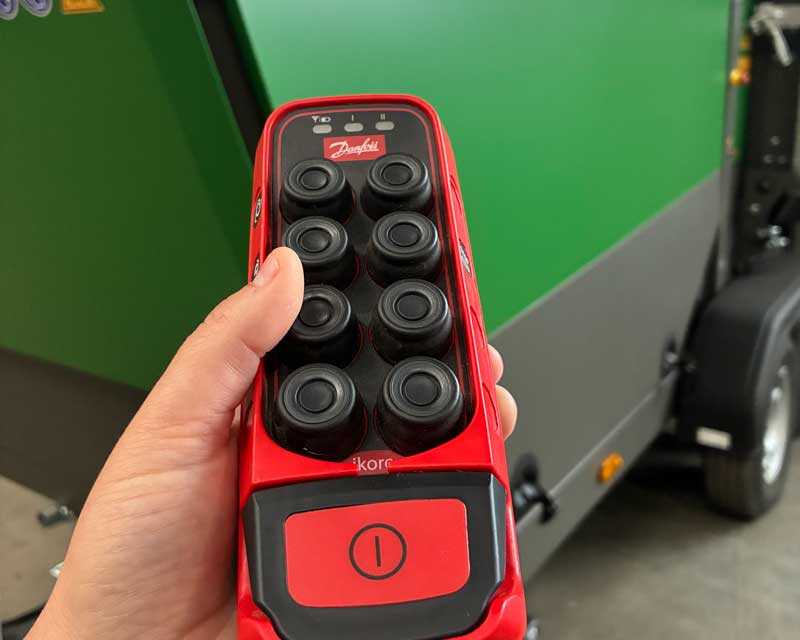

Thanks to remote control, the screening machine can also be operated by one person.

Corrosion protection

Long-term corrosion protection by means of the sandblasting of the surfaces and a PU top coat. The conveyor belt frames are hot-dip galvanised.

Simple operation

Large touchscreen displays with graphical information enable the user-friendly and intuitive control of the screening machines. The Pro series features mobile control and a telemetry package.

Different drive types

Drive
Electric (16 A)

Optional

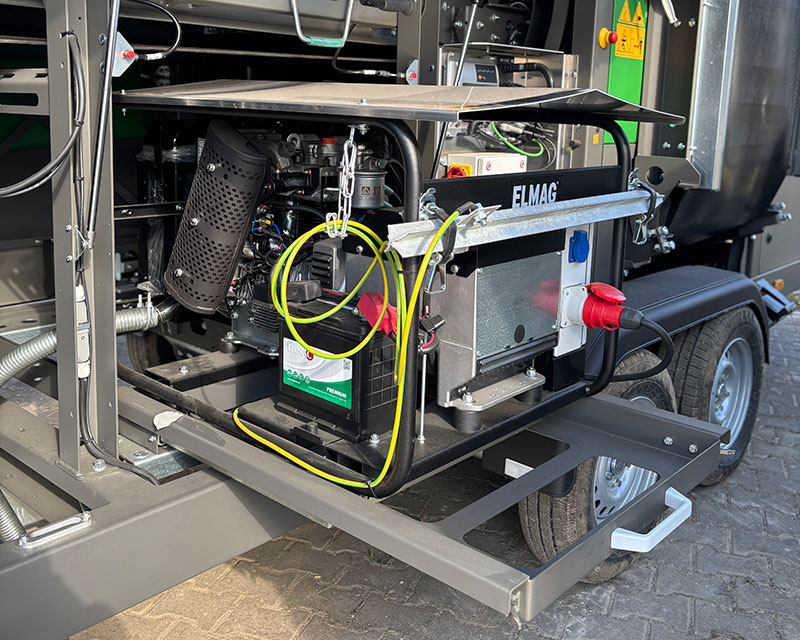

• Diesel generator

Mobile control and telemetry

The Pro series features mobile control and a telemetry package.

Control system

Modern mobile control

instead of control cabinet, especially suitable for harsh environments

Easy commissioning & installation

Plug-and-Play-Design

All belts and electrical elements

Telemetry and GPS

incl. faster access for dealer & manufacturer service, real-time monitoring & remote maintenance

New operating concept

intuitive user guidance with clear display of all relevant information at a glance

Predefined programs

Storage of programs

for repeatable processes

Decentralized frequency inverter

for improved cooling of the drives (avoidance of overheating problems)

Modern, dark design

(„Dark Theme“) for better readability

Load cut-off Belt feeder

Overload cut-off

Constructive

Modern design

Lighter than the MS 1600:

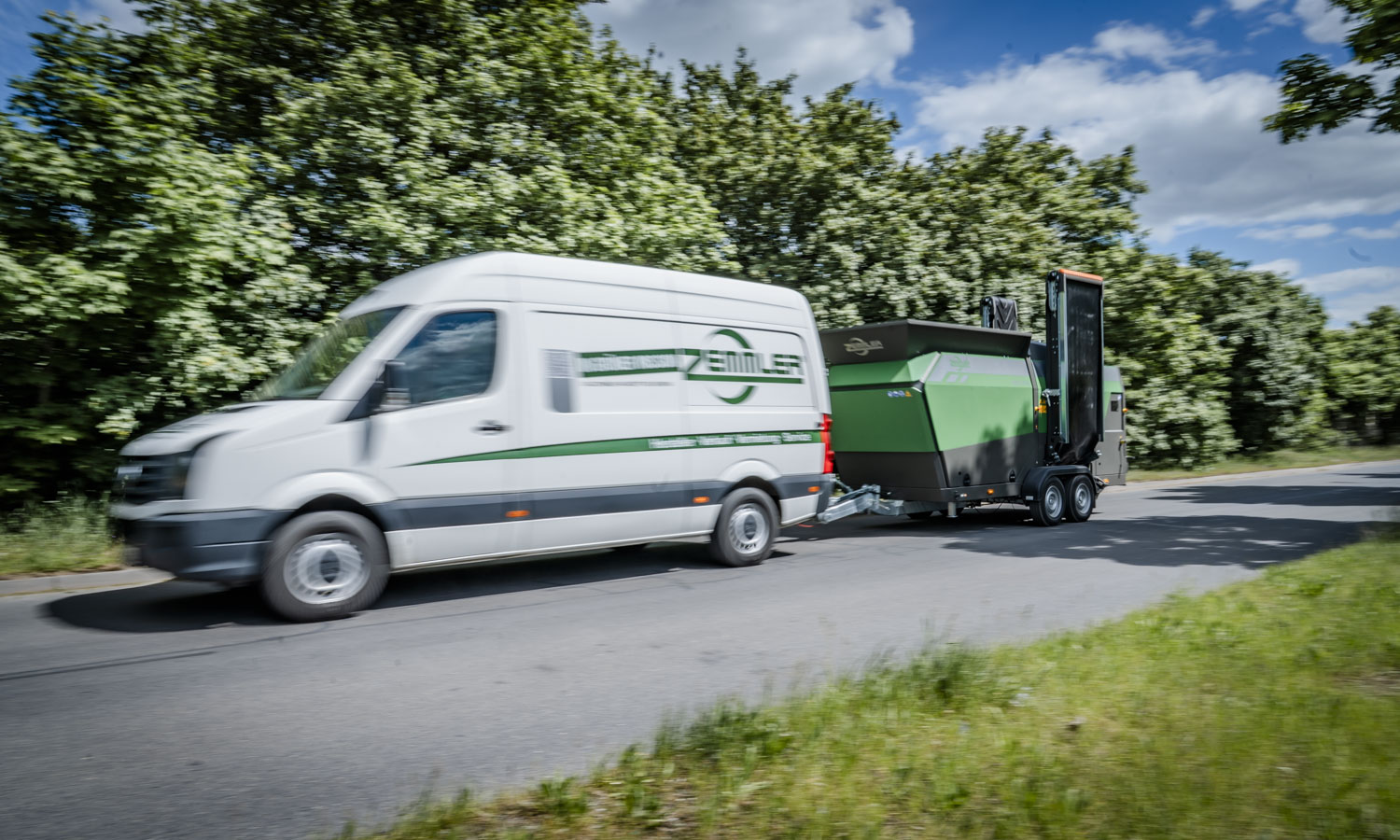

Max. weight of 3.5 t incl. attachment ring & unit, easy transportation with SUVs, vans

Improved design of the belts

Support feet integrated in the machine

New drive with belt

smoother running and maintenance-free up to 10,000 h (no lubrication of the chain, no changing of chain or sprocket)

Safer:

Intervention protection, shutdown, position of the display (rear)

Variable spare parts

Trommel motors, chassis etc. are available with a multi-supplier strategy – less dependency in the event of supply bottlenecks

Integrated protection of the light bar (protective cover)

Light bar does not necessarily have to be dismantled

Enlarged hopper & low hopper

for improved loading

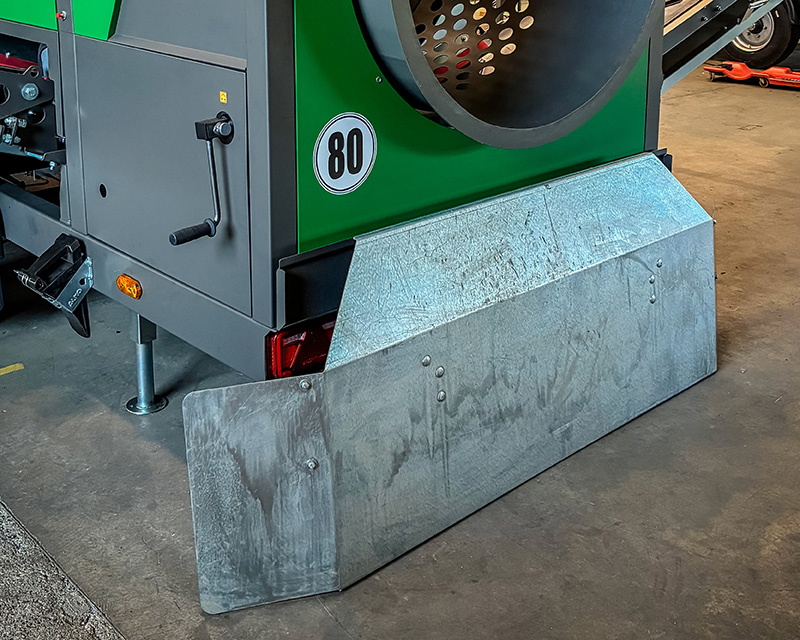

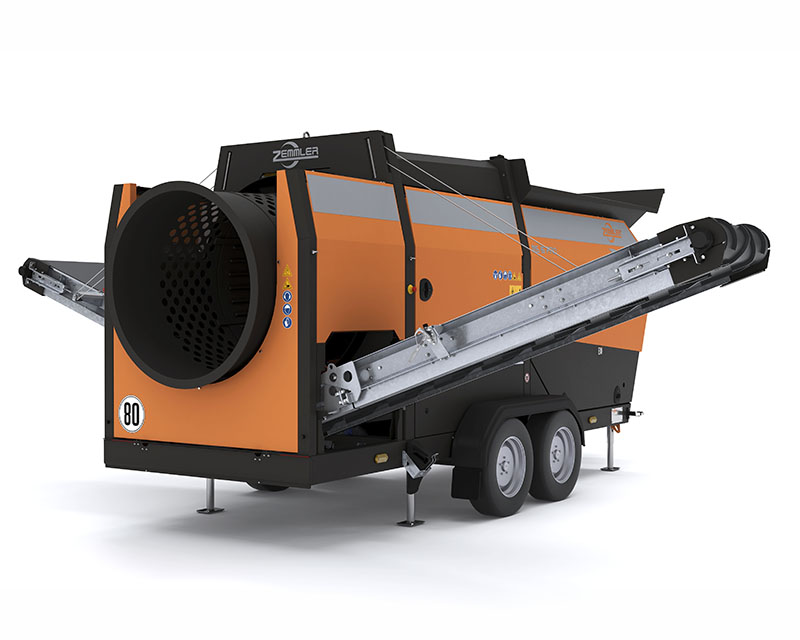

Optional equipment

Processable materials

Thanks to innovative double trommel technology

Thanks to innovative Double trommel technology, our MULTI SCREEN^® screening machines allow for the easy screening and recycling of various materials. Changeable wire screen linings enable optimal customization to individual requirements.
