Multi Screen® MS 3200
up to 60 m³/h screening capacity
18 m² screening area
Our compact solution

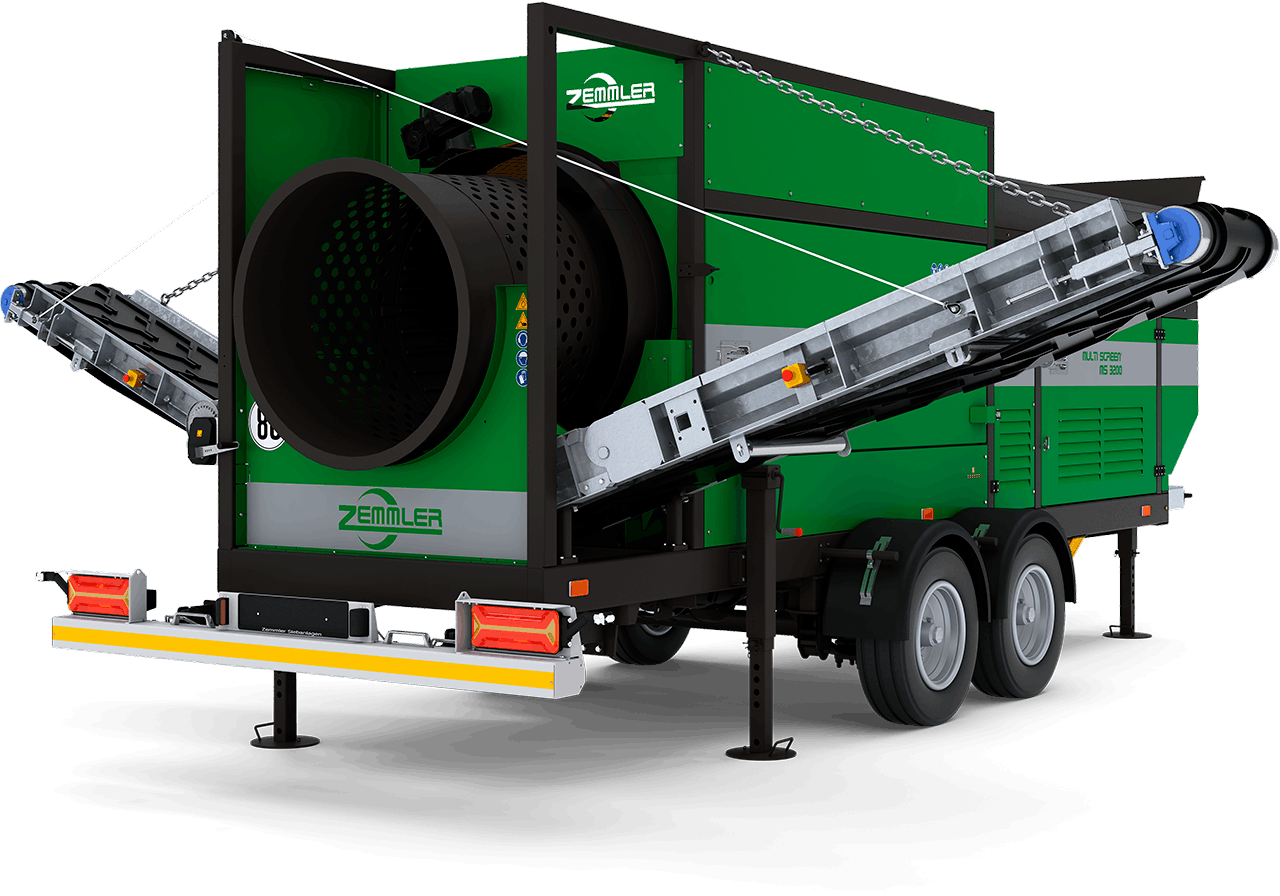

The compact trommel screening machine for professional applications.
The MS 3200 is a powerful and compact trommel screening machine that is ideal for professional use. It has been specially developed to meet the requirements of recycling companies, civil engineering firms, gardening and landscaping companies and municipal operations.
The electrical, low-maintenance drive ensures efficient and environmentally friendly operation. On request, the system can be equipped with an additional belt for the coarse fraction. Extended belts for the fine and middle fractions, with a hydraulic unit, are also available as an option.
Specialised for these requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to double trommel technology special applications
- Horse grounds
- Artificial turf recycling
- Playgrounds
- Golf courses
9,5 t
Maximum weight
Electrical drive optional external power generator
Double trommel
technology
Full mobility
at 80 km/h
Interchangeable
wire screen
Tested
safety system
Technical specifications
Trommel length
3,000 / 3,900 mm
Feed hopper
Volume 2.3 m³
Feed width 3,050 mm
Weight
max. 9,500 kg
Towing device
Towing eye Ø 40/50 mm
Trommel diameter
1,300 mm
Total screening area
18 m²
Drive
electric (32 A), optional
power generator
Transport measurements (LxWxH)
9,200 x 2,450 x 3,600 mm
(standard)

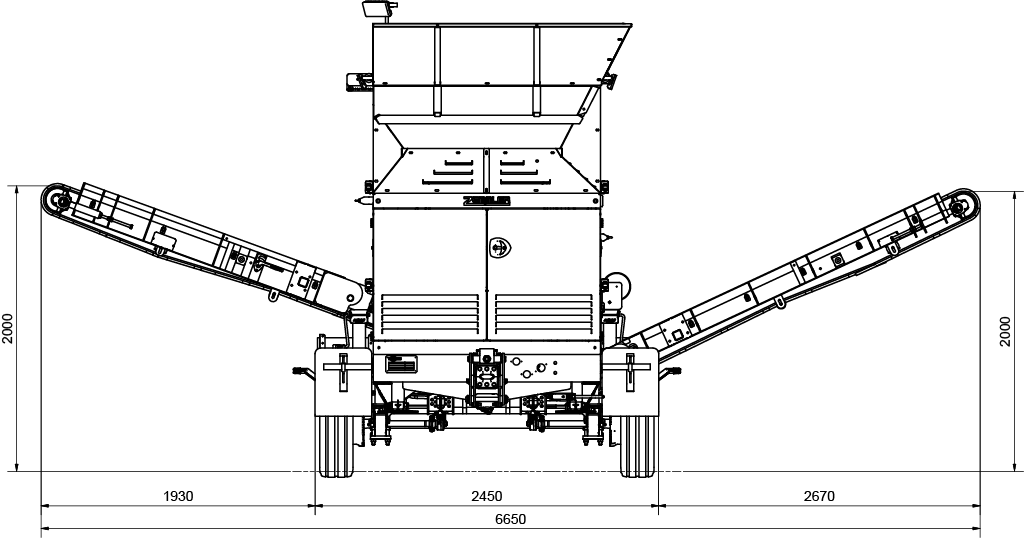

Option 1 (Standard) With attachement ring
Conveyor belt fine fraction
- Belt width: 600 mm
- Discharge side: Direction of travel left
- Discharge height: 2,000 mm
- Mechanically foldable
Conveyor belt middle fraction
- Belt width: 600 mm
- Discharge side: Direction of travel right
- Discharge height: 2,000 mm
- Mechanically foldable

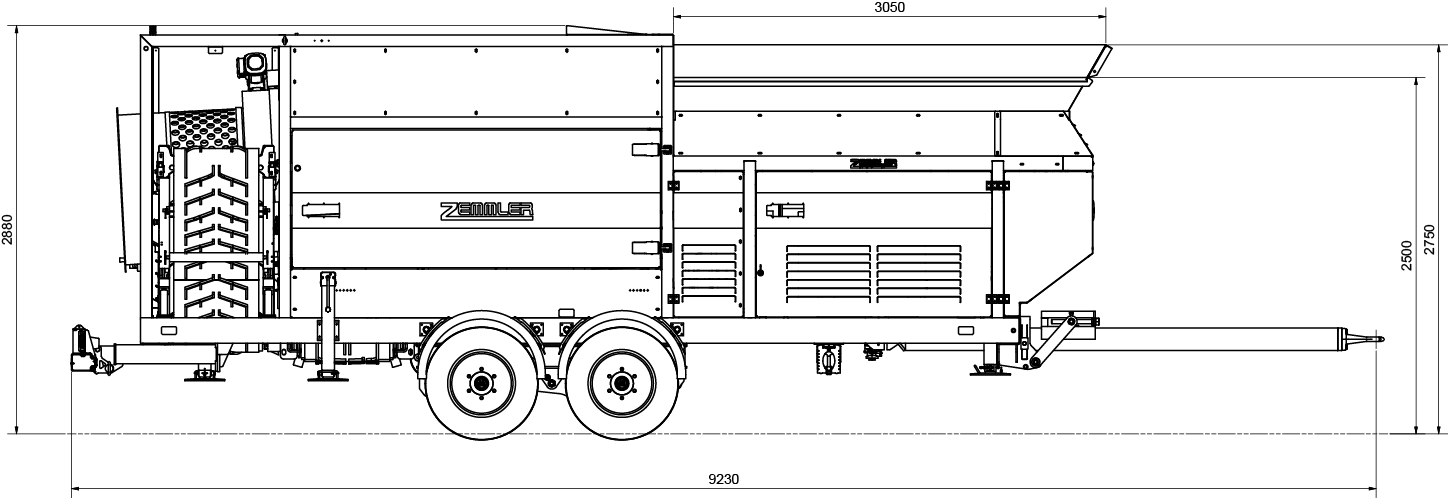

Transport dimensions
- Length: 9,200 mm
- Width: 2,450 mm
- Height: 3,600 mm

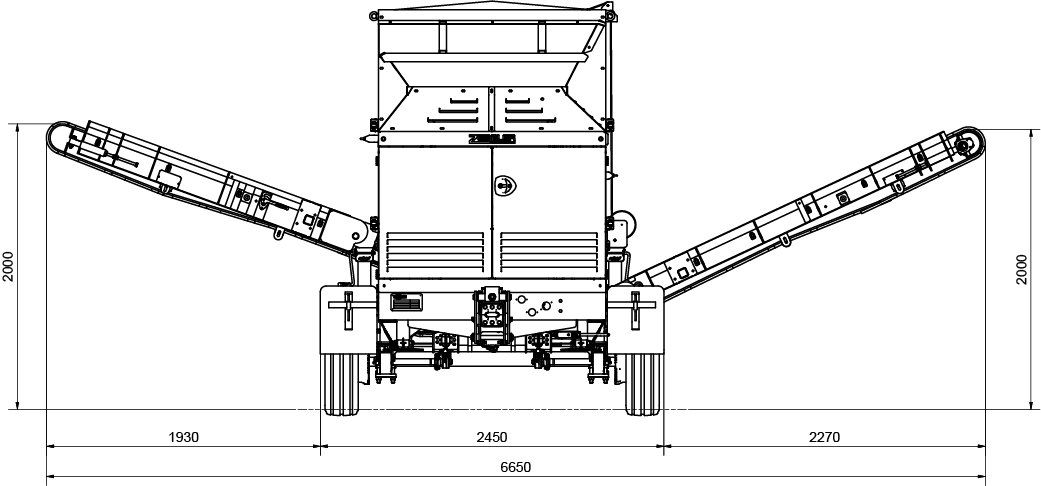

Working dimensions
- Length: 9,200 mm
- Width: 6,650 mm
- Height: 2,880 mm
3. Fraction via attachement ring

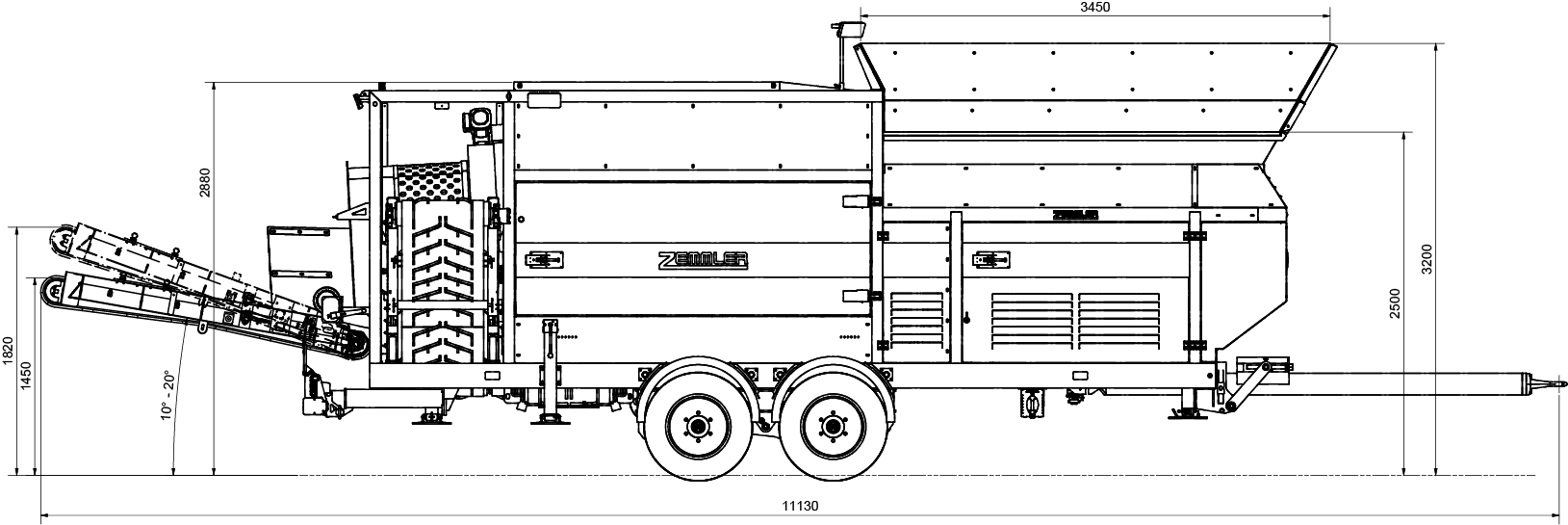

Option 2 With coarse fraction belt
Conveyor belt fine fraction
- Belt width: 600 mm
- Discharge side: Direction of travel left
- Discharge height: 2,000 mm
- Mechanically foldable
Conveyor belt middle fraction
- Belt width: 600 mm
- Discharge side: Direction of travel right
- Discharge height: 2,000 mm
- Mechanically foldable

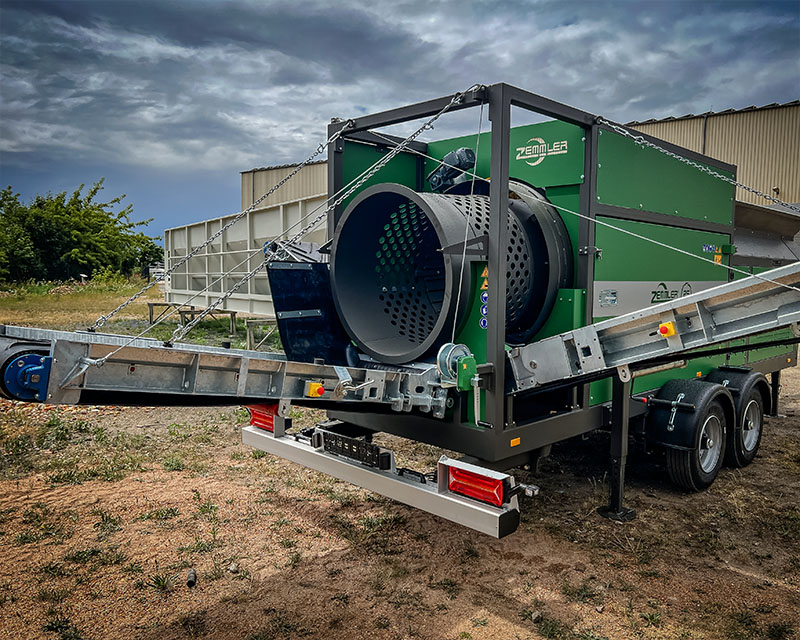

Conveyor belt coarse fraction
- Belt width: 800 mm
- Discharge side: back
- Discharge height: 1,450 mm - 1,802 mm
- Inclination: 10-20°
- Mechanically foldable
Transport dimensions
- Length: 9,300 mm
- Width: 2,450 mm
- Height: 3,600 mm
Working dimensions
- Length: 11,130 mm
- Width: 6,650 mm
- Height: 2,880 mm
Additional load compensation (500 kg) is required
Unless a diesel generator is installed
Hopper attachment recommended

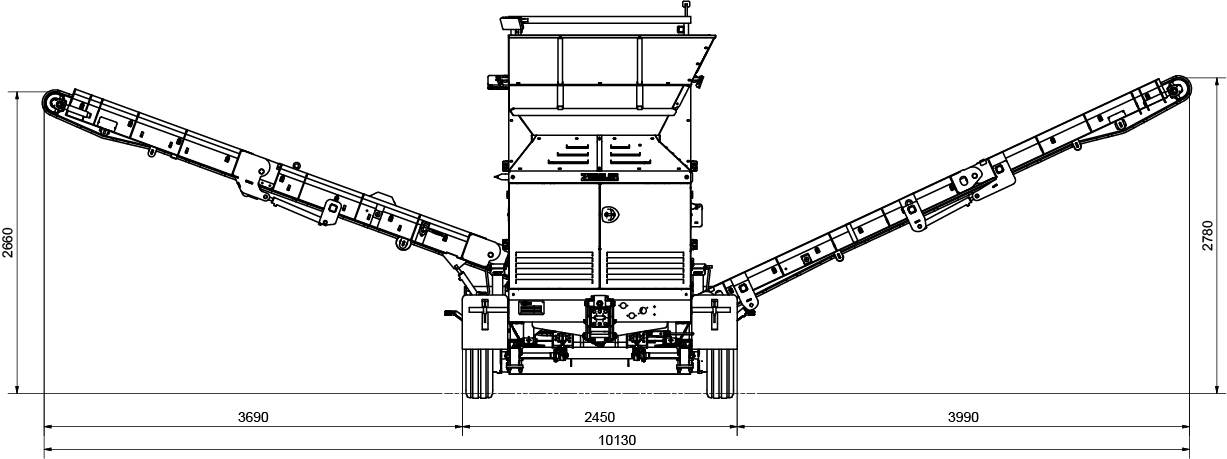

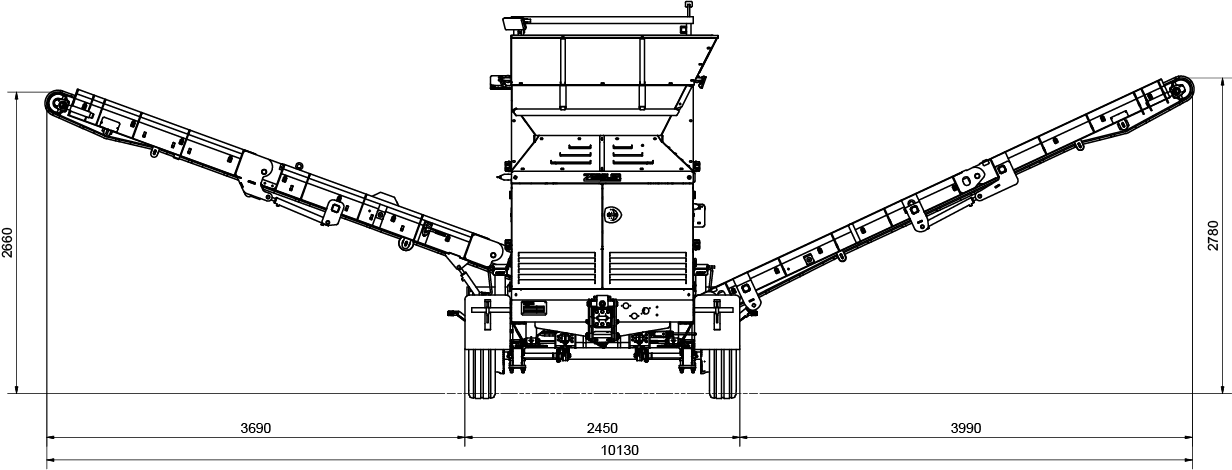

Option 3 Extended fine and middle fraction belt.
With hydraulic unit and attachement ring.
Conveyor belt fine fraction
- Belt width: 600 mm
- Discharge side: Direction of travel left
- Discharge height: 2,780 mm
- Hydraulically foldable
Conveyor belt middle fraction
- Belt width: 600 mm
- Discharge side: Direction of travel right
- Discharge height: 2,650 mm
- Hydraulically foldable

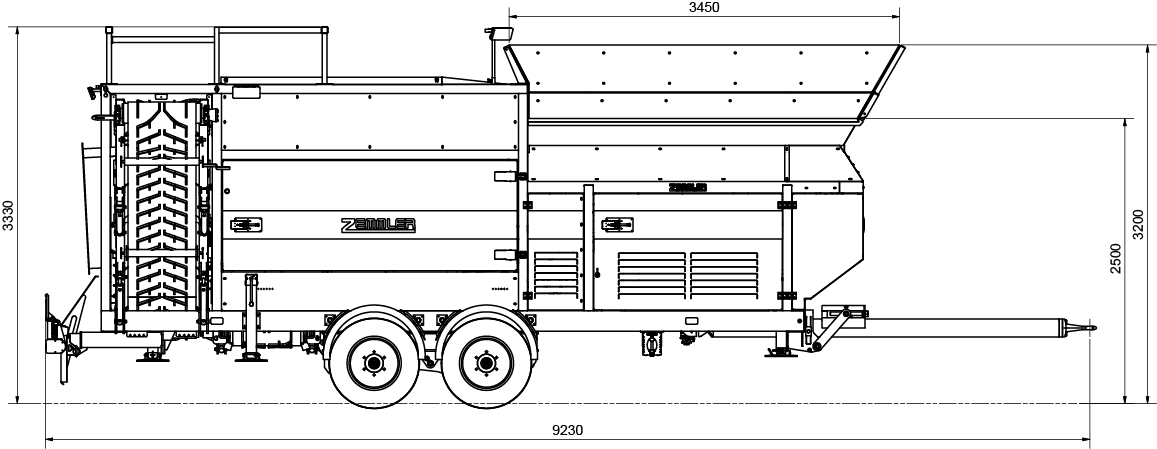

Transport dimensions
- Length: 9,230 mm
- Width: 2,450 mm
- Height: 3,650 mm
Working dimensions
- Length: 9,230 mm
- Width: 10,100 mm
- Height: 3,345 mm
Additional load compensation (500 kg) is required
Unless a diesel generator is installed
Additional hydraulic unit required for folding the straps
3. Fraction via attachement ring
Hopper attachment recommended

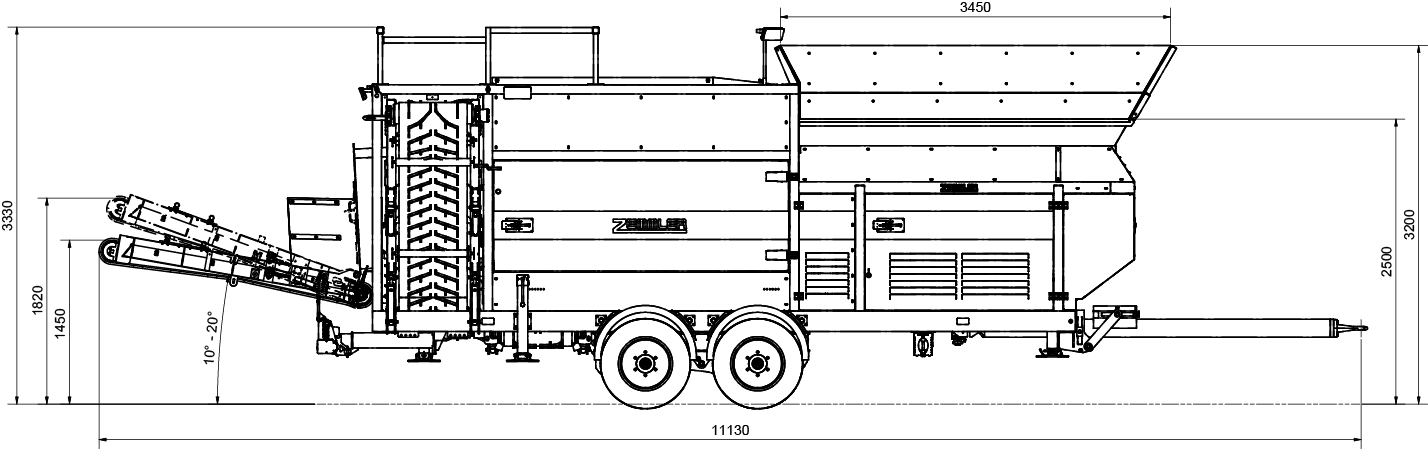

Option 4 Extended fine and middle fraction belt.
With hydraulic unit and coarse fraction belt
Conveyor belt fine fraction
- Belt width: 600 mm
- Discharge side: Direction of travel left
- Discharge height: 2,780 mm
- Hydraulically foldable
Conveyor belt middle fraction
- Belt width: 600 mm
- Discharge side: Direction of travel right
- Discharge height: 2,650 mm
- Hydraulically foldable
Conveyor belt coarse fraction
- Belt width: 800 mm
- Discharge side: back
- Discharge height: 1,450 mm - 1,802 mm
- Inclination: 10-20°
- Hydraulically foldable
Transport dimensions
- Length: 9,300 mm
- Width: 2,450 mm
- Height: 3,650 mm
Working dimensions
- Length: 11,150 mm
- Width: 10,100 mm
- Height: 3,325 mm
Additional load compensation (1,000 kg) is required
Unless a diesel generator is installed
Additional hydraulic unit required for folding the straps
Hopper attachment recommended
Advantages of the MS 3200 at a glance
Easy to maintain
Wide-opening doors provide easy access for maintenance and inspection work.
One-man operation
Thanks to remote control, the screening machine can also be operated by one person.
Corrosion protection
Long-term corrosion protection by means of the sandblasting of the surfaces and a PU top coat. The conveyor belt frames are hot-dip galvanised.
Simple operation
Large touchscreen displays with graphical information enable the user-friendly and intuitive control of the screening machines. The Pro series features mobile control and a telemetry package.
Different drive types
Drive
Electric (32 A)
Optional
• Diesel generator
Electric (32 A)
Optional
• Diesel generator
Clean screens
A cleaning brush with its own drive ensures a clean outer sieve.
Pure-electric, low-maintenance drive
Easy commissioning & installation
Optional equipment

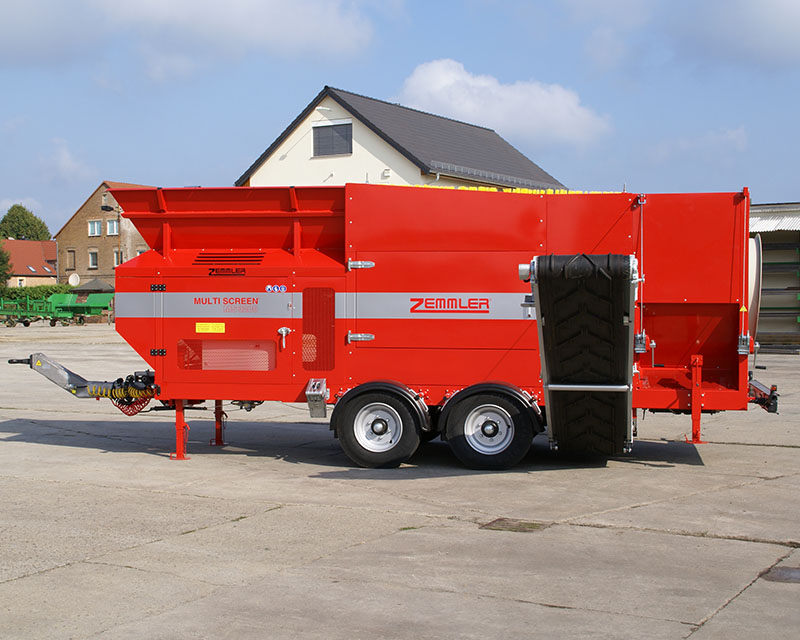

Special paint finish

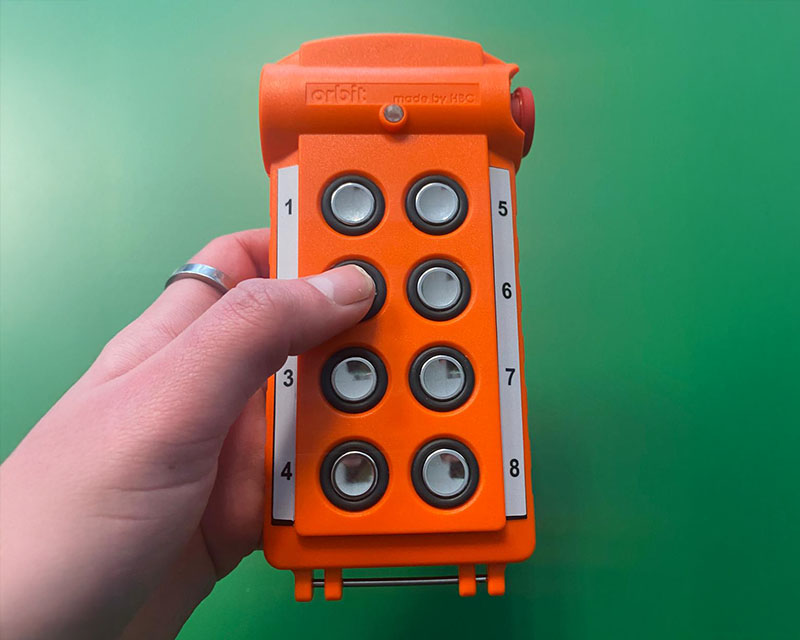

Remote control
LED spotlights
Central lubrication system
Bisection of the inner trommel
Anti-adhesion protection
trommel door (PE)
Outer wire screens
Chute for 3rd fraction

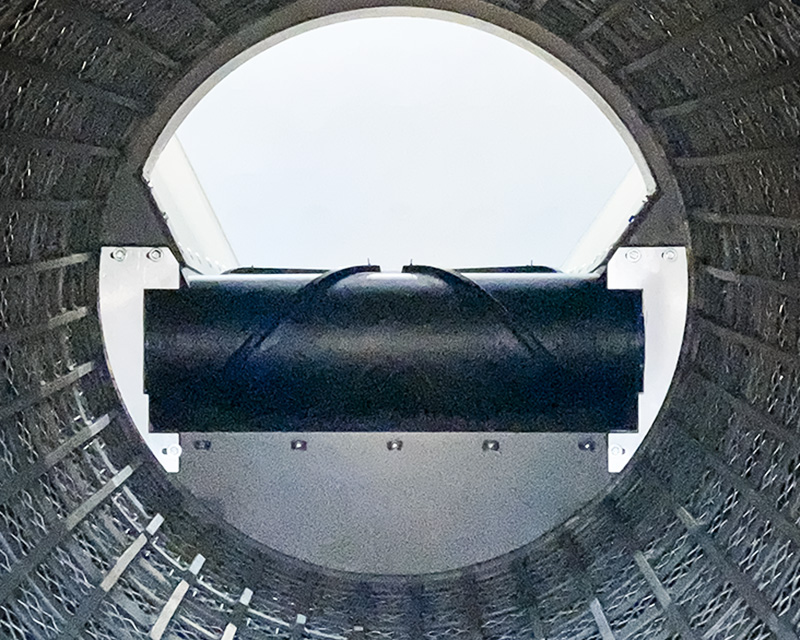

Profile belt

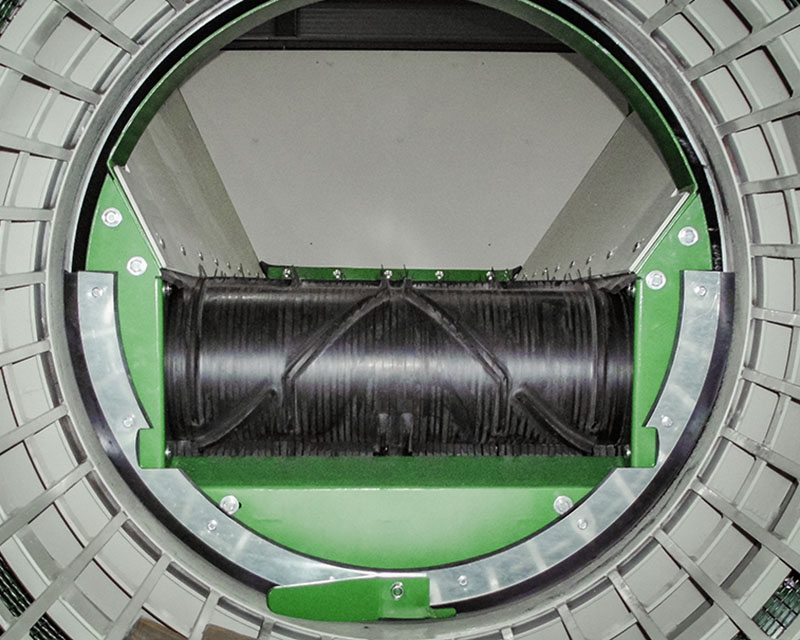

Hopper wear protection

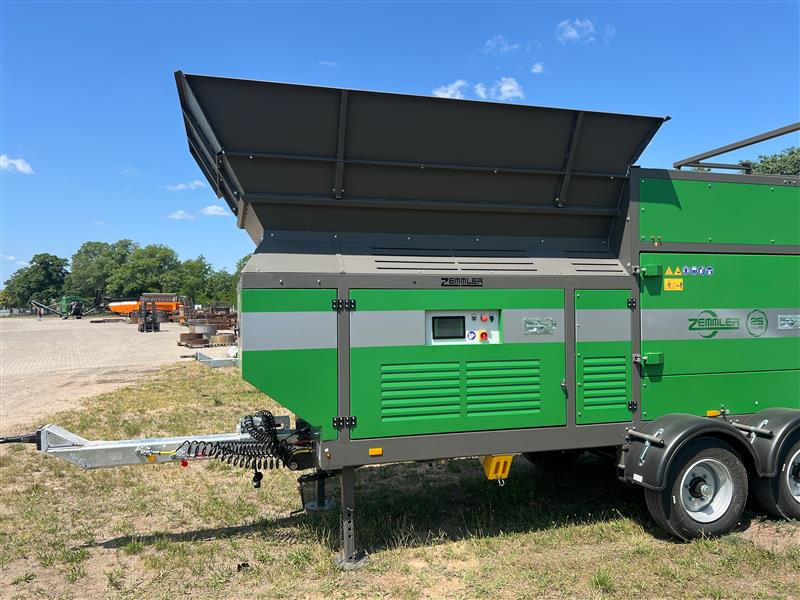

Hopper extension

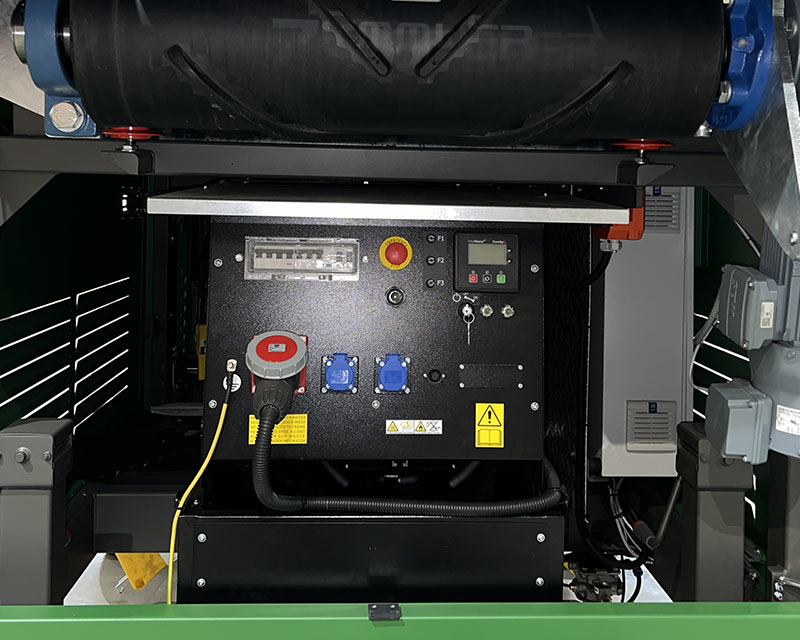

Diesel generator
Coarse fraction conveyor

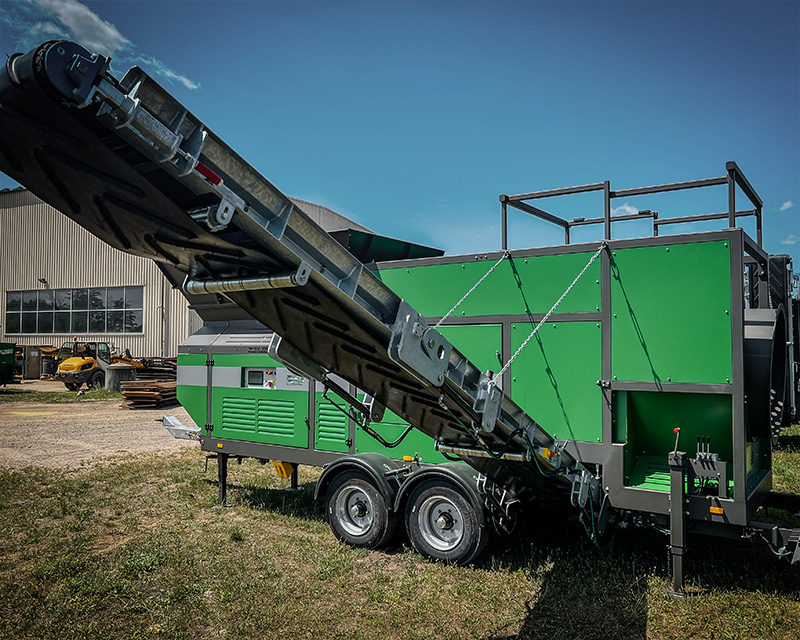

Extended conveyors
Inner wire screens

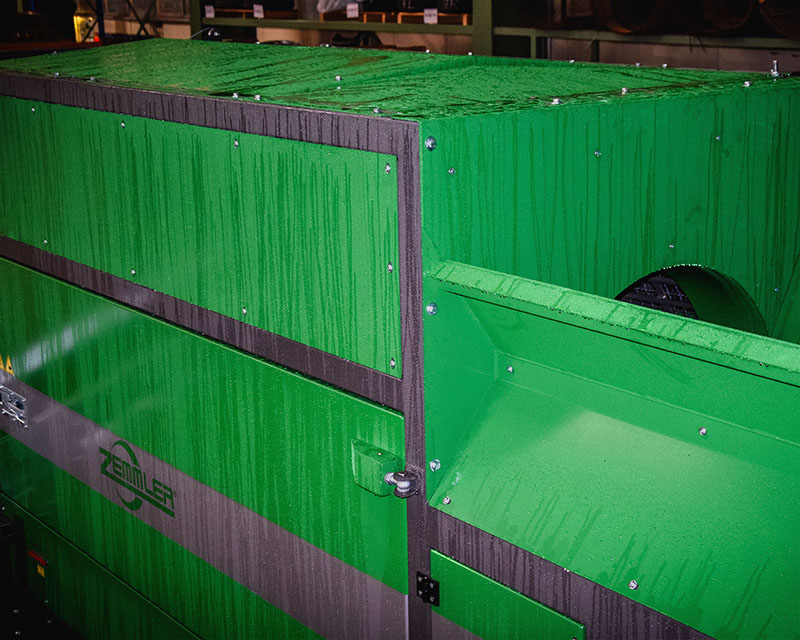

Weather and dust protection roof
Processable materials
Thanks to innovative double trommel technology
Thanks to innovative Double trommel technology, our MULTI SCREEN® screening machines allow for the easy screening and recycling of various materials. Changeable wire screen linings enable optimal customization to individual requirements.
Your Contact
Do you have any questions about our screening machines, or would you like to arrange a demonstration?
You can reach us here:
We are here for you!
