Double trommelTechnology

Innovative screening technology

The rotating trommel, consisting of an inner and outer trommel, enables efficient screening into three fractions in one operation.

Together

From production to the screening result:
Think green, act sustainably.

Longevity

The solid inner trommel protects the outer screens from coarse material and thus ensures the longevity of the screening machine.

More profit, lower disposal costs

By separating the material into three fractions rather than the conventional two, an additional recoverable end product is produced.

Actively utilised screen surface

The square steel bars and rods of the inner trommel act as carriers and ensure that even highly cohesive, clay-like material and lumps are broken up.

Reduction of processing costs

The middle fraction can be separated from the fine and coarse components in a single operation, eliminating an additional processing step.

Clean separating cut & fine screening

Efficient and precise fine screening, as the coarse grain is already separated in the inner trommel, which means that screening of 2 mm is also possible.

4. Fractioning possible

By means of a hydraulically folding grid.

More power per metre of trommel surface

The double-trommel design results in a significantly larger screening surface compared to the single trommel and therefore more output per meter.

Constructive gradient of the trommel

The constructive gradient of the trommel eliminates the need for a screw conveyor, leaving more screen surface available for utilisation.

The Zemmler screening concept

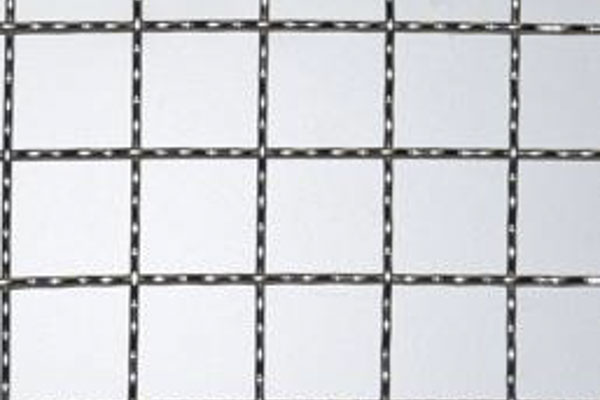

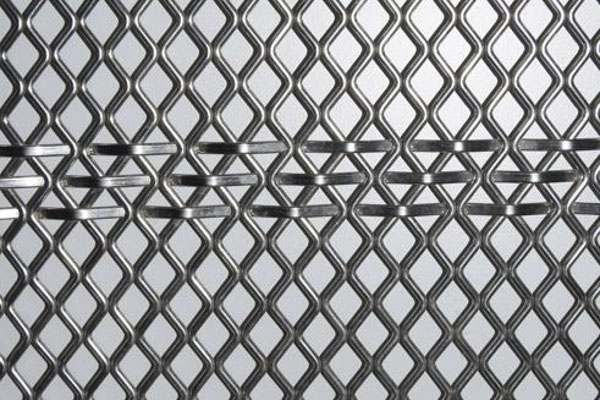

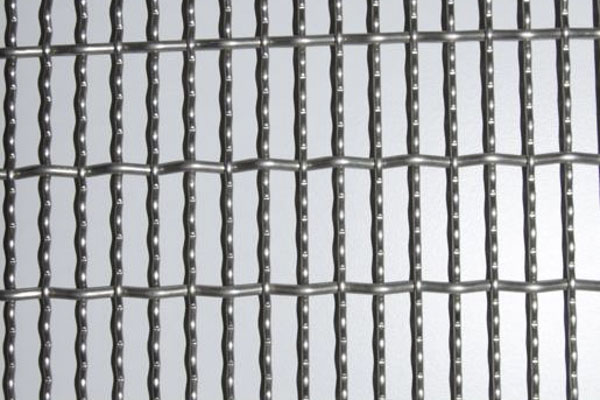

Maximum flexibility according to replaceable wire screen linings

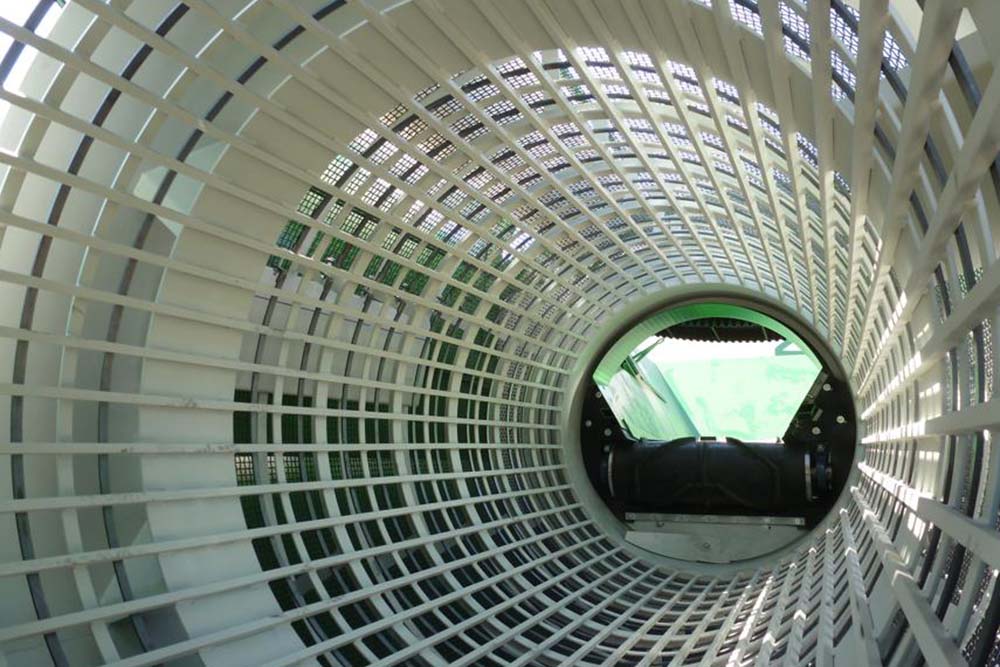

The skeleton of the double trommel forms the technical basis for efficient material processing.

The wire screens can be replaced quickly and without special tools, allowing the mesh size – and thus the cut line – to be precisely adjusted to the screening requirements.

The trommel is customised to suit the respective material. In addition to the external screens, internal screens can be flexibly added as required. This combination enables the separating cut to be precisely defined.
