Multi Screen® MS 6700-R
up to 180 m³/h screening capacity
63 m² screening area
The trommel screening machinefor high performance

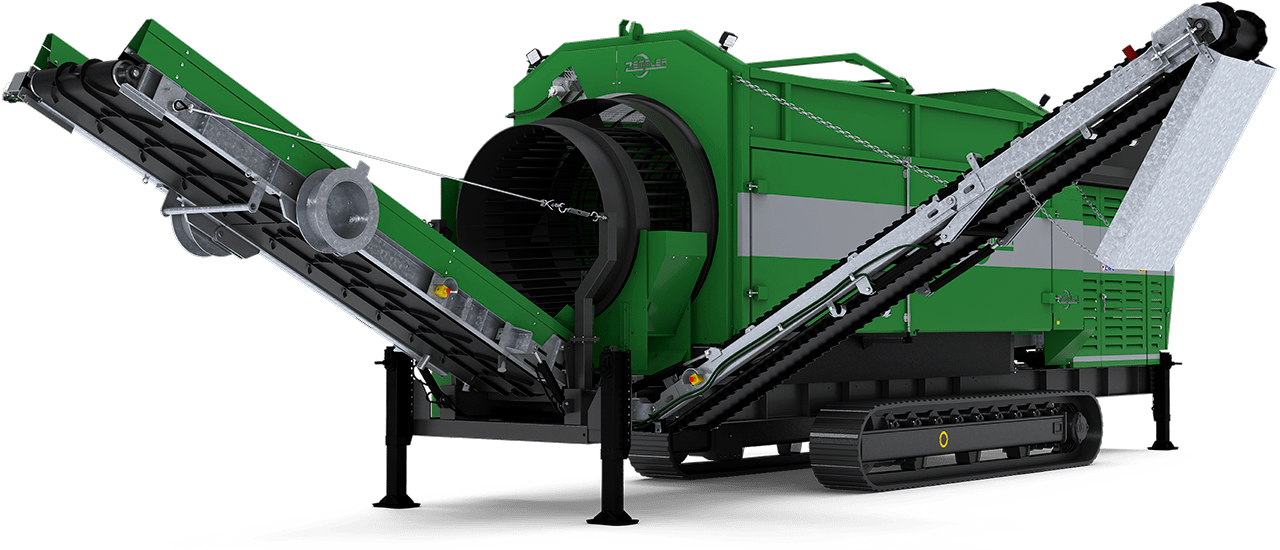

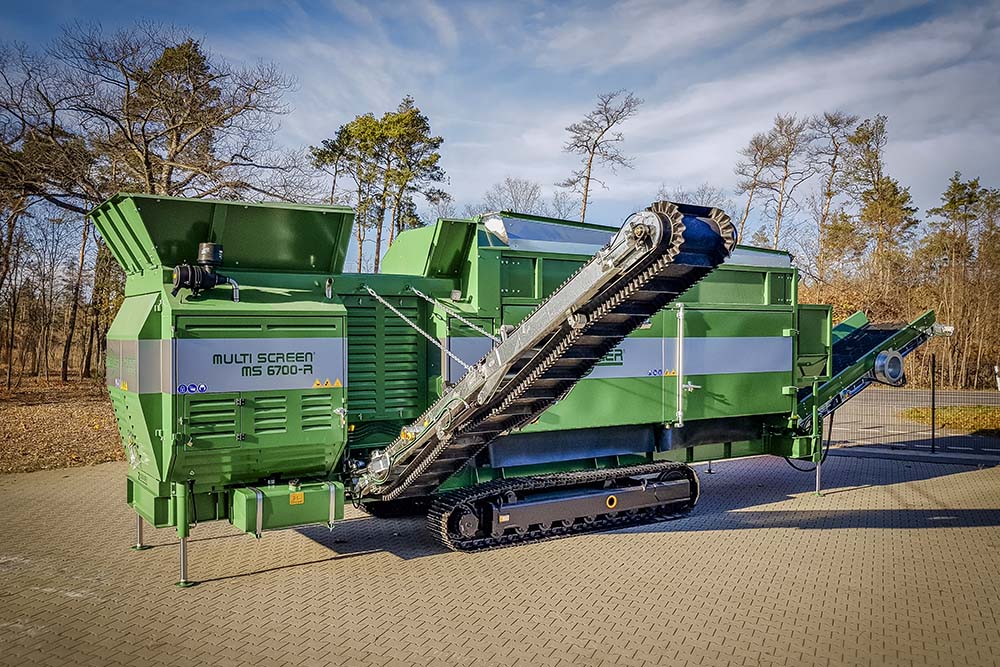

The Zemmler MULTI SCREEN® MS 6700 is the largest trommel screening machine in our portfolio and is available as a standard track-mounted unit.
It combines large dimensions and double trommel technology to open up new dimensions in processing. With a total screening area of more than 60 m² and a trommel length of 6.7 m, it achieves maximum performance of up to 180 m3/h. Users with a very high throughput and small mesh size in particular achieve optimum screening results. The system can be flexibly configured with numerous options.
Specialised for these requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to double trommel technology special applications
- Horse grounds
- Artificial turf recycling
- Playgrounds
- Golf courses
Double trommel
technology
Interchangeable
wire screen
Tracked chassis
Tested
safety system
Technical specifications
Trommel length
6,700 mm
Feed hopper
Volume 5.5 m³
Feed width 3,650 mm
Weight
max. 24,000 kg
Transportation
Tracked chassis
Trommel diameter
2,000 mm
Total screening area
63 m²
Drive
Diesel-hydraulic
Transport measurements (LxWxH)
11,700 x 2,550 x 4,000 mm (standard)
Advantages of the MS 6700-Rat a glance
Easy to maintain
Wide-opening doors provide easy access for maintenance and inspection work.
One-man operation
Thanks to remote control, the screening machine can also be operated by one person.
Corrosion protection
Long-term corrosion protection by means of the sandblasting of the surfaces and a PU top coat. The conveyor belt frames are hot-dip galvanised.
Simple operation
Large touchscreen displays with graphical information enable the user-friendly and intuitive control of the screening machines. The Pro series features mobile control and a telemetry package.
Different drive types
Drive
Diesel-hydraulic
Diesel-hydraulic
Clean screens
A cleaning brush with its own drive ensures a clean outer sieve.
Optional equipment
Hydraulic outriggers
Grizzly grid
Magnetic separation
Central lubrication system
Maxi remote control
Bisection of the inner trommel
Anti-adhesion protection
trommel door (PE)
Profile belt
Hopper wear protection
TopSpin Pre-cleaner
LED spotlights
rubber track pads
Outer wire screens
Inner wire screens
Processable materials
Thanks to innovative double trommel technology
Thanks to innovative Double trommel technology, our MULTI SCREEN® screening machines allow for the easy screening and recycling of various materials. Changeable wire screen linings enable optimal customization to individual requirements.
