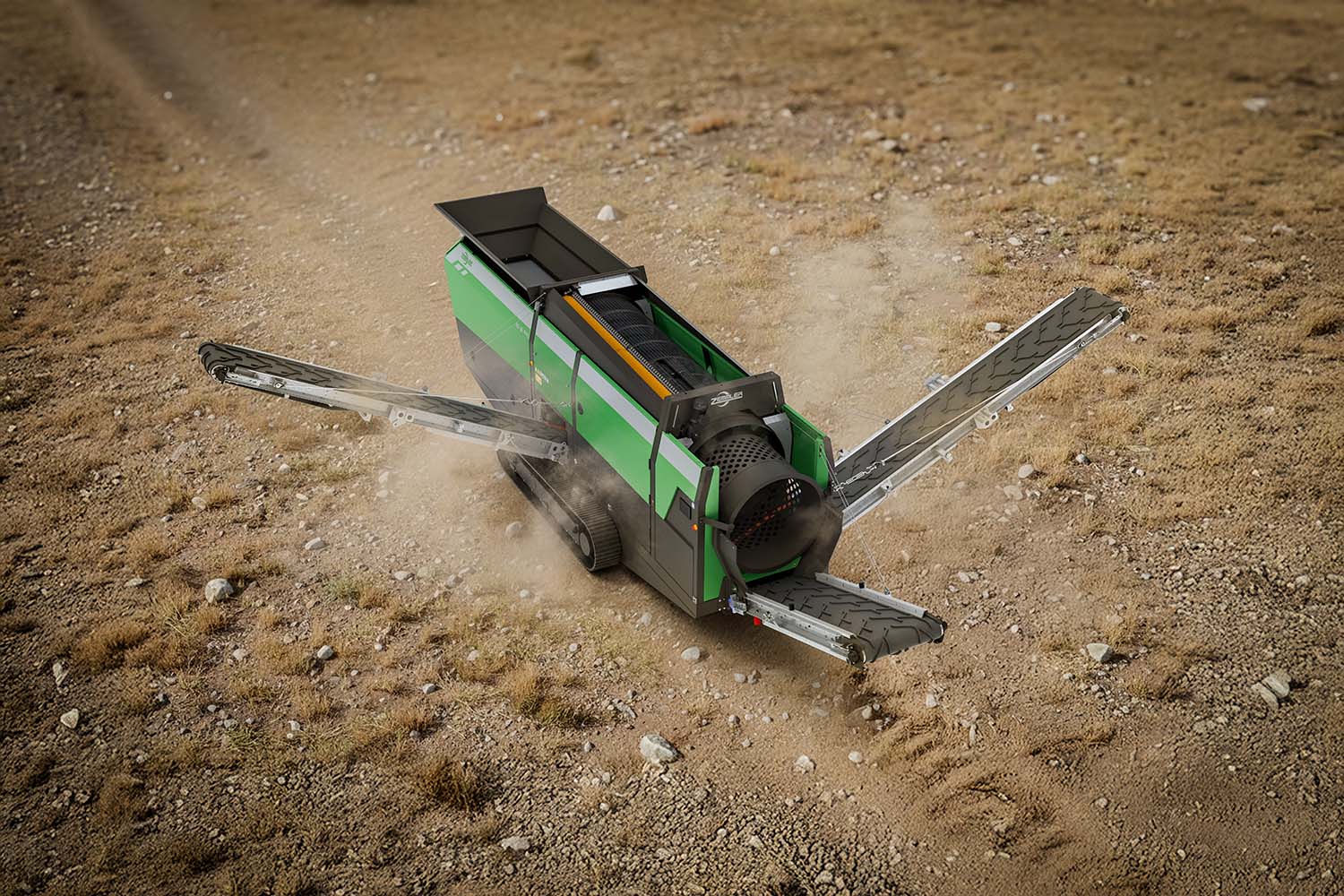

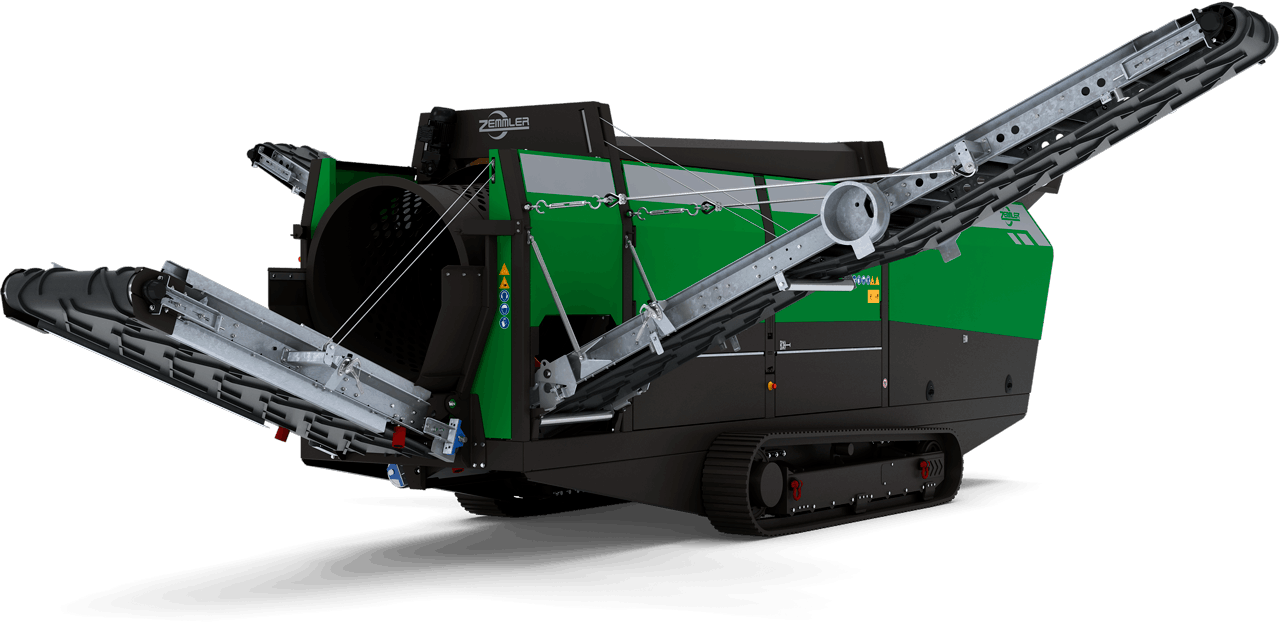

Multi Screen® MS 36 Pro
up to 100 m³/h screening capacity
operated with a diesel generator.
Our VERSATILE SOLUTION
The MS 36 Pro is also equipped with a mobile control unit and an integrated telemetry module that enables real-time monitoring and remote maintenance. It also impresses with its service- friendly plug-&-play design and intuitive mobile control, which makes maintenance and operation particularly easy. This makes the MS 36 Pro the reliable solution for professionals who value performance, versatility and ease of use.
Specialised for these requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to double trommel technology special applications
- Horse grounds
- Artificial turf recycling
- Playgrounds
- Golf courses
7 t
Maximum weight
Electrical drive optional diesel generator
Double trommel
technology
Tracked chassis
Tested
safety system
Interchangeable
wire screen
With mobile control & telemetry package included
Technical specifications
Trommel length
3,482 / 4,372 mm
Feed hopper
Volume 2.2 m³
Feed width 3,210 mm
Weight
max. 7,000 kg
Transportation
Tracked chassis
Trommel diameter
1,300 mm
Total screening area
23 m²
Drive
Electric (32 A), optional diesel generator or battery pack
Transport measurements (LxWxH)
8,058 x 2,540 x 3,190 mm,
7,913 x 2,215 x 2,550 mm Container
Advantages of the MS 36 Pro at a glance
Easy to maintain
One-man operation
Corrosion protection
Simple operation
Different drive types
Electric (32 A)
Optional
• Diesel generator
• Battery pack
Mobile control and telemetry
Clean screens
Pure-electric, low-maintenance drive
Modern mobile control
instead of control cabinet, especially suitable for harsh environments
Easy commissioning & installation
Telemetry and GPS
incl. faster access for dealer & manufacturer service, real-time monitoring & remote maintenance
New operating concept
intuitive user guidance with clear display of all relevant information at a glance
Predefined programs
Storage of programs
for repeatable processes
New touch display
changed position: to the rear and higher
Modern, dark design
(„Dark Theme“) for better readability
Decentralized frequency inverter
for improved cooling of the drives (avoidance of overheating problems)
Plug-and-Play-Design
All belts and electrical elements
Load cut-off Belt feeder
Overload cut-off
Longer service life / corrosion-resistant
no perforated plates / sheet metal doublings, no (internally) unpainted hollow profiles
Variable spare parts
Trommel motors, chassis etc. are available with a multi-supplier strategy – less dependency in the event of supply bottlenecks
New drive with belt
smoother running and maintenance-free up to 10,000 h (no lubrication of the chain, no changing of chain or sprocket)
Service plus
Plug-and-play cabling, complete belt removal in 3 steps
Safer
Intervention protection, shutdown, position of the display (rear)
Container-compatible
Shipping/transport/containerization possible if the belts are dismantled
Optional equipment

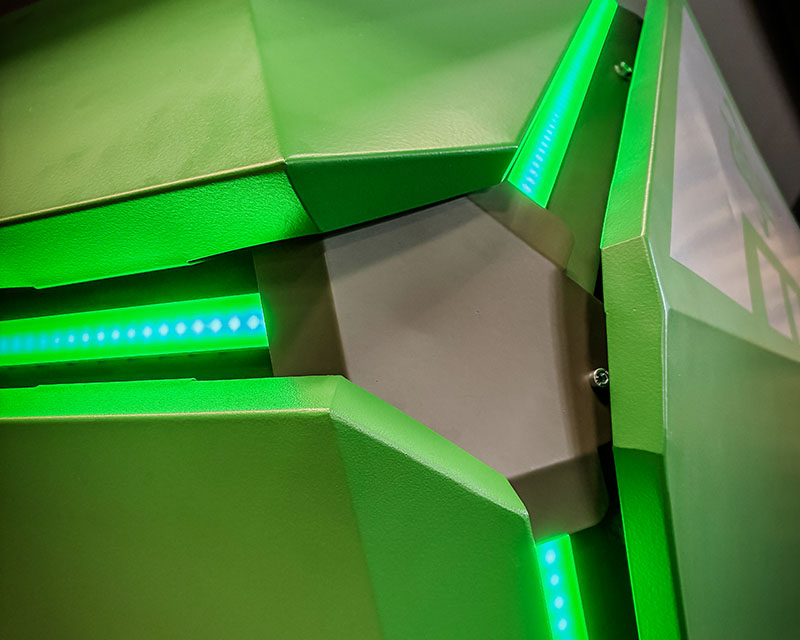

LED ambient lighting
Multicoloured with machine status display

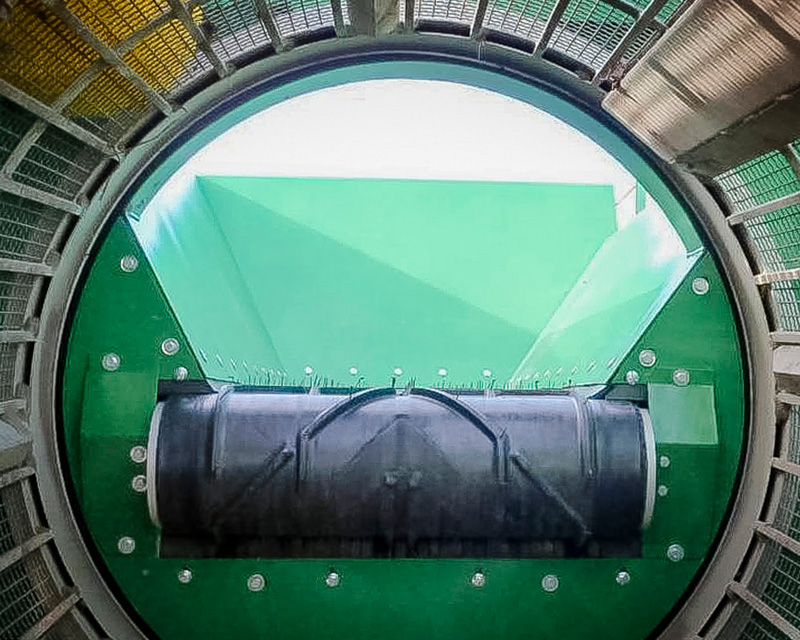

Profile belt

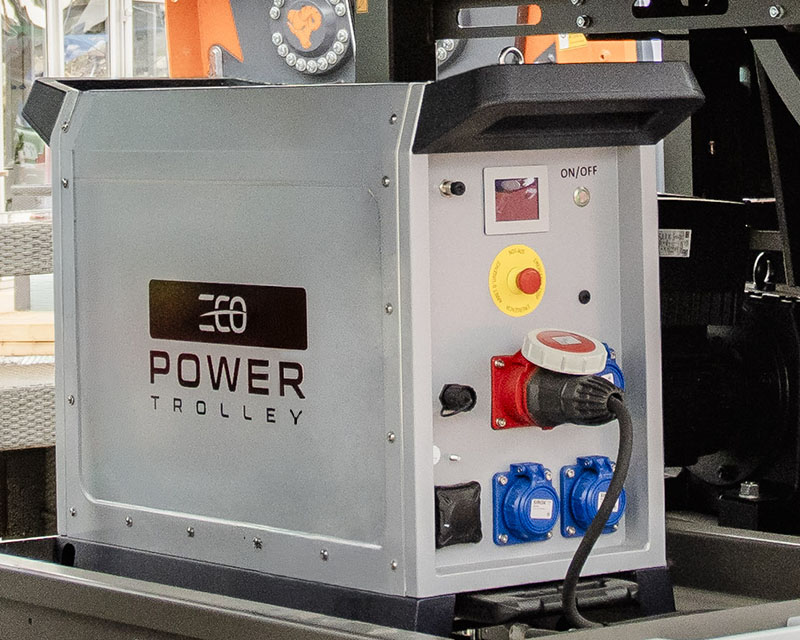

Battery pack

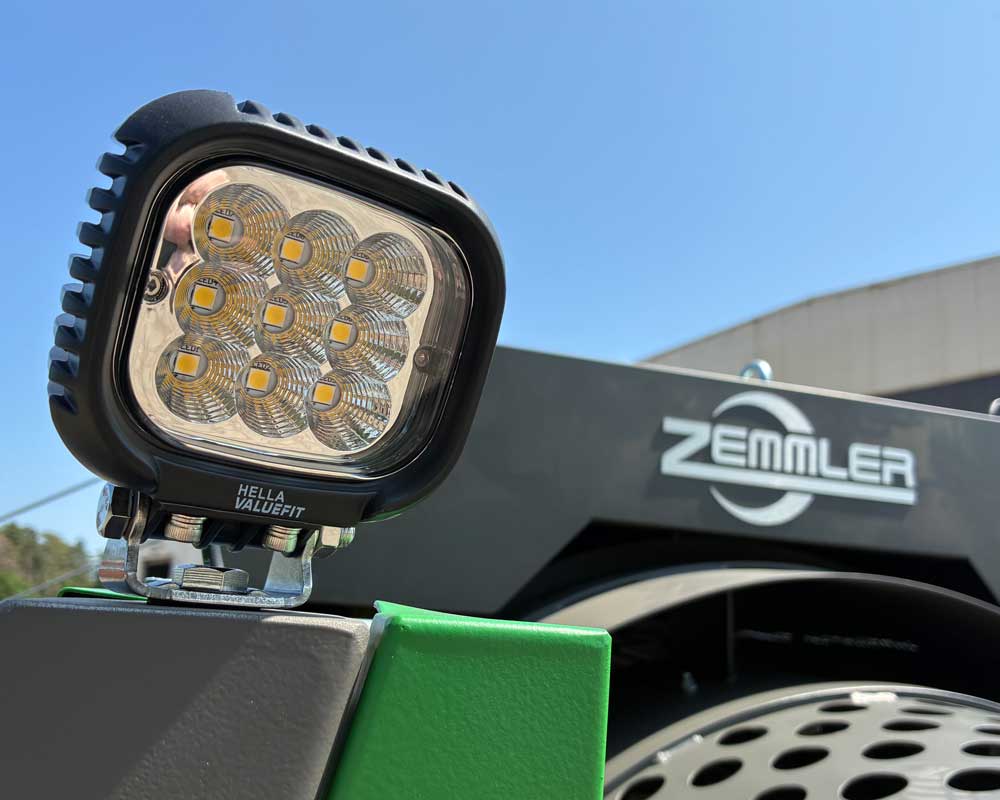

LED spotlights

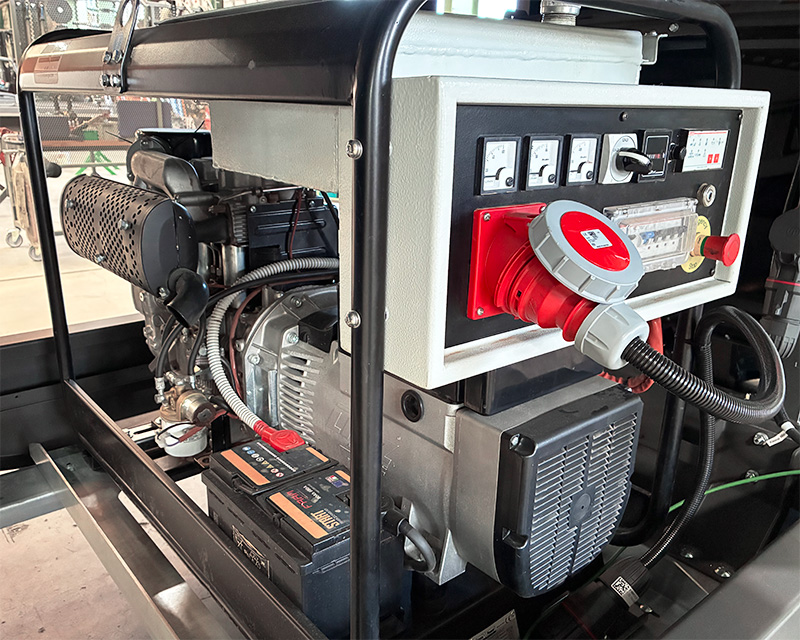

Diesel generator

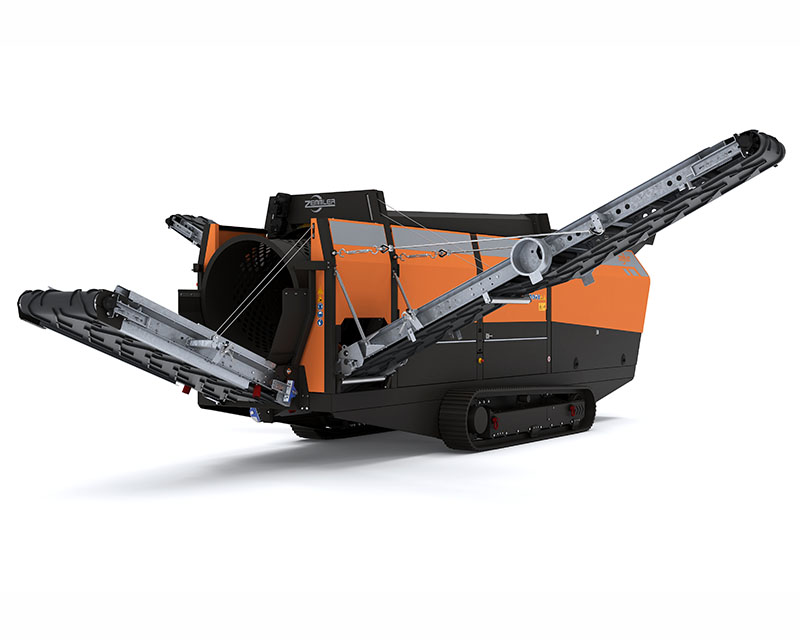

Special paint finish
rubber track pads
Bisection of the inner trommel

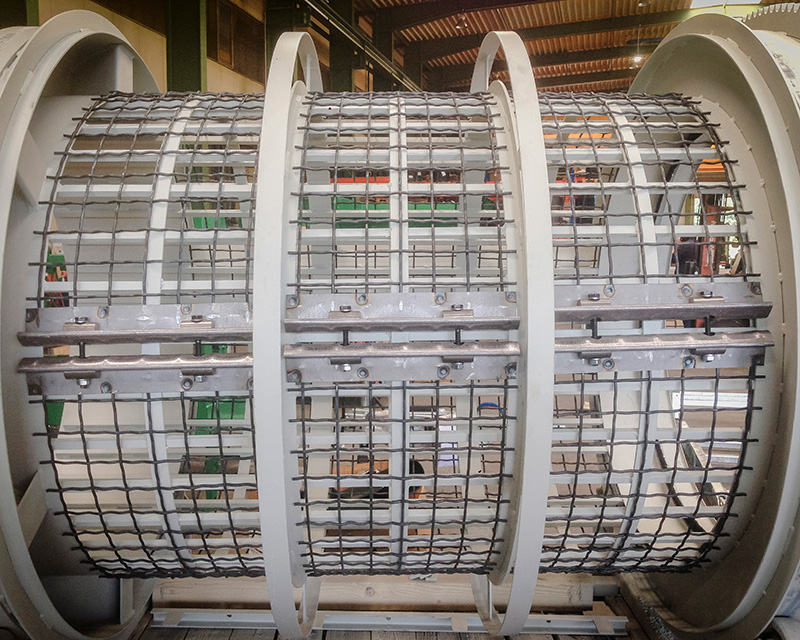

Inner wire screens

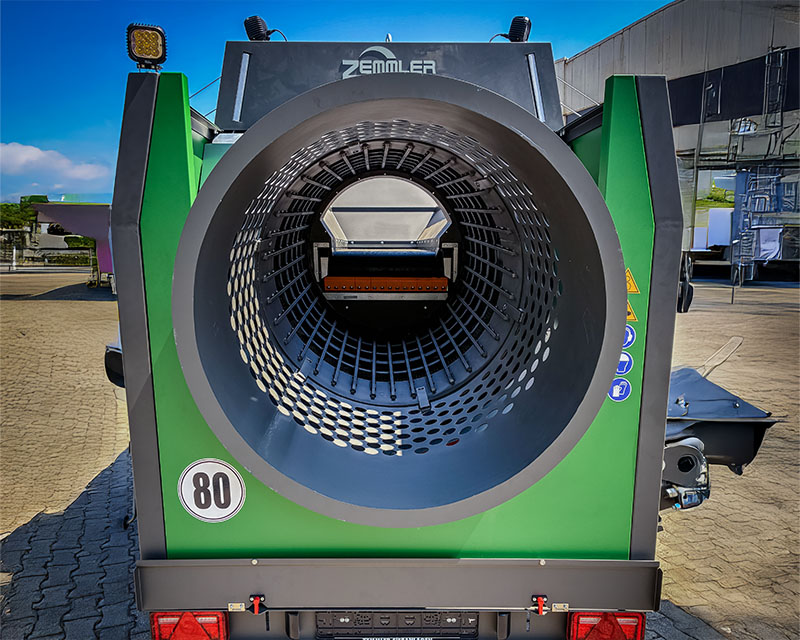

Slip-on ring

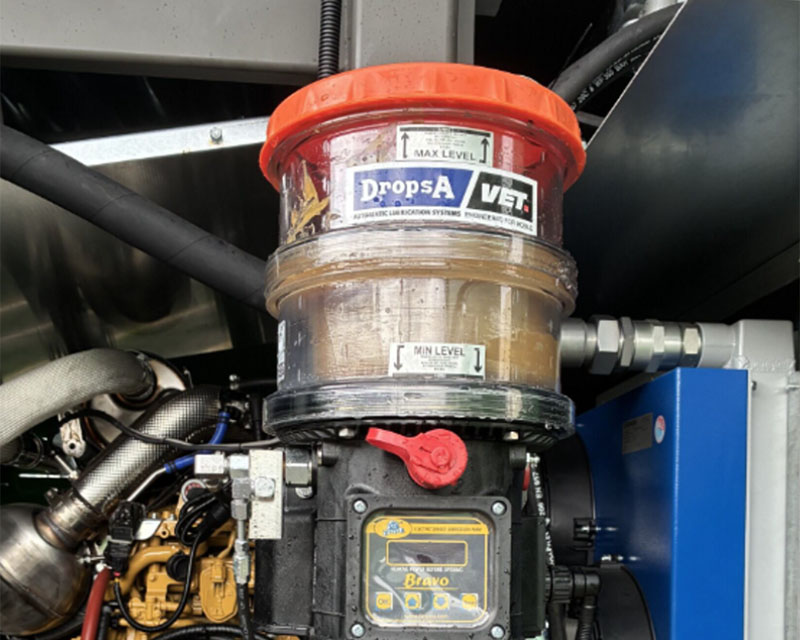

Central lubrication system

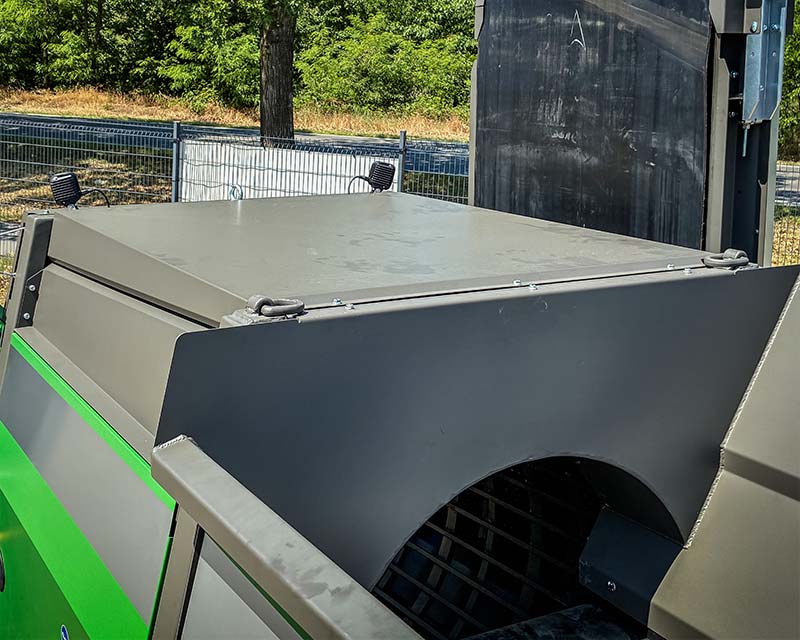

Weather and dust protection roof

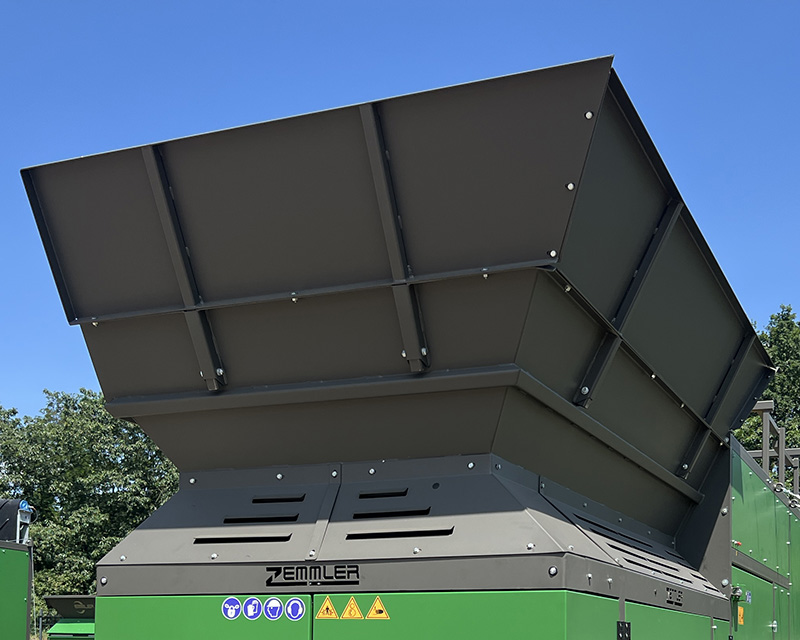

Hopper extension
Hopper wear protection
Anti-adhesion protection
trommel door (PE)
Processable materials
Thanks to innovative double trommel technology
Thanks to innovative Double trommel technology, our MULTI SCREEN® screening machines allow for the easy screening and recycling of various materials. Changeable wire screen linings enable optimal customization to individual requirements.
