Multi Screen® MS 5200
up to 150 m³/h screening capacity
With sensors and electronic
control for maximum safety
and optimum operation.
control for maximum safety
and optimum operation.
47 m² screening area
The all-rounder with HIGH FLEXIBILITY
The Zemmler MULTI SCREEN® MS 5200 is a powerful solution for versatile screening applications.
With its sophisticated design, the screening machine combines efficiency, flexibility and ease of use at the highest level. It is available as a track-mounted version and can therefore be used directly on the construction site.
The long double trommel, in combination with the wire screen linings, ensures the precise, clean separation of all materials. A fourth fraction can also be separated using a hydraulically folding stone grid. With four different drive concepts and numerous options, the machine can be configured for any screening task.
Specialised for these requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to Double trommel technology special applications
- Horse grounds
-
Artificial turf
recycling
- Playgrounds
- Golf courses
Siebanlage MS 5200 im EinsatzVideos - Anwendungsbeispiele
Environmentally friendly
Full mobility
at 80 km/h
Double trommel
technology
Tested
safety system
Interchangeable
wire screen
Different drive concepts
Optional Tracked chassis
Technical specifications
Trommel length
5,200 mm
Feed hopper
Volume 5.5 m³
Feed width 3,650 mm
Weight
max. 20,000 kg
Towing device
Towing eye Ø 50 mm
Trommel diameter
2,000 mm
Total screening area
47 m²
Drive
Diesel-hydraulic/electrical,
Electro-hydraulic, electrical
Transport measurements (LxWxH)
11,750 x 2,550 x 4,000 mm (Standard)
Advantages of the MS 5200 at a glance
Easy to maintain
Wide-opening doors provide easy access for maintenance and inspection work.
One-man operation
Thanks to remote control, the screening machine can also be operated by one person.
Corrosion protection
Long-term corrosion protection through sandblasting of surfaces and PU topcoat. The conveyor belt frames are hot-dip galvanized.
Easy operation
Large touch displays with graphical information offer user-friendly
and intuitive control of the screening machines.
Different drive types
Drive
Diesel-hydraulic
Alternatively
• Diesel-electric

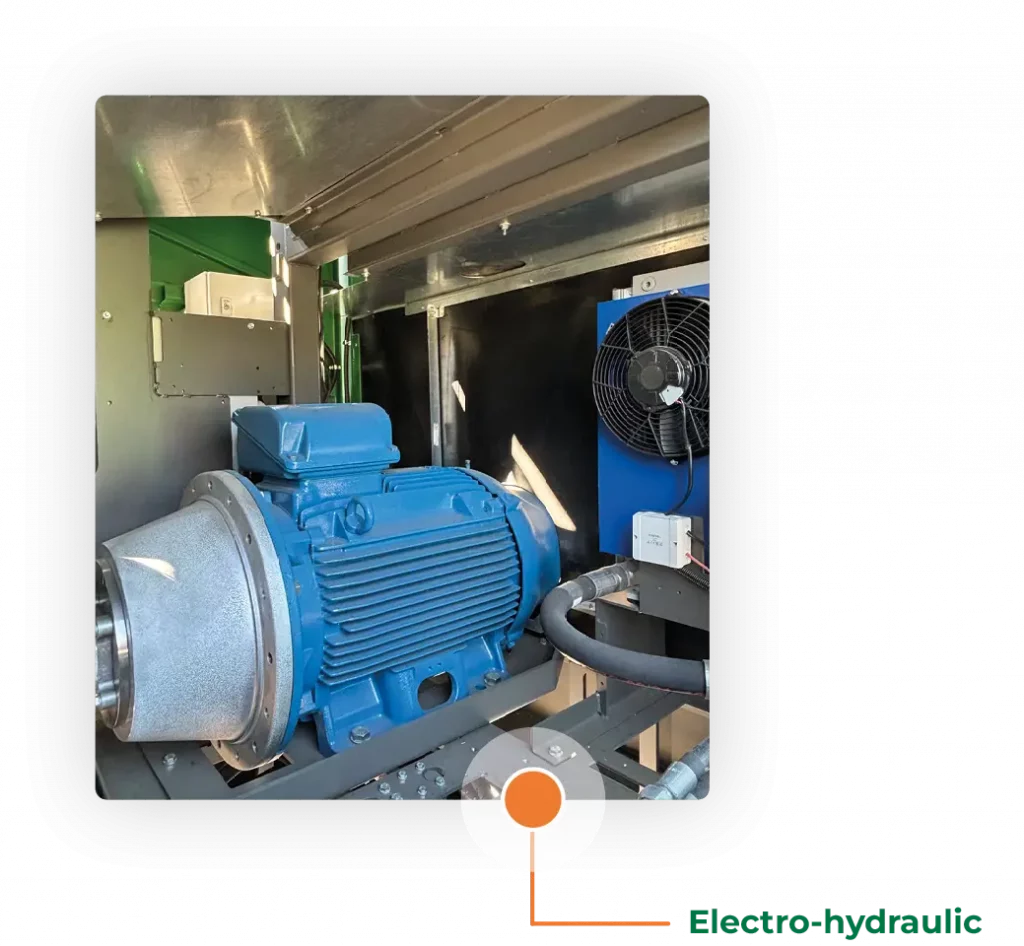

• Electro-hydraulic

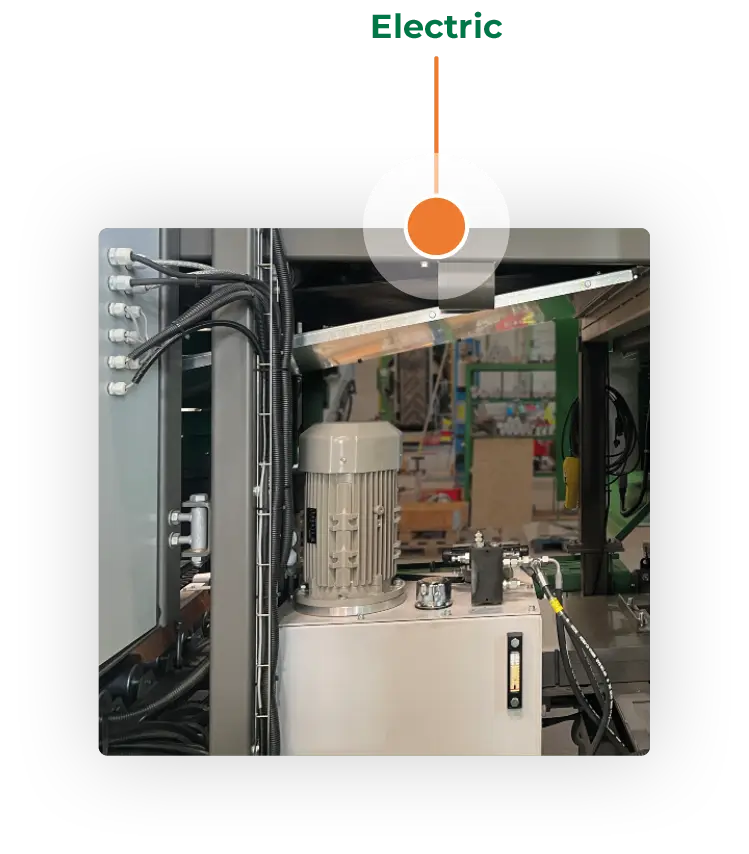

• Electric
Alternatively
• Diesel-electric
• Electro-hydraulic
• Electric
Clean screens
A cleaning brush with its own drive ensures a clean outer sieve.
4 Antriebskonzepte im Detail auf unterschiedliche Anforderungen abgestimmt.
Die Zemmler MS 5200 ist mit verschiedenen Antriebskonzepten erhältlich:
diesel-hydraulisch, elektrisch, elektro-hydraulisch und diesel-elektrisch.
Alle Varianten basieren auf derselben leistungsstarken Doppeltrommel-Siebanlage mit bis zu 150 m³/h Durchsatz und rund 46 m² Siebfläche.
Optional equipment
Tracked chassis
Special paint finish
Grizzly grid
Maxi remote control
LED spotlights
TopSpin Pre-cleaner
Central lubrication system
Bisection of the inner trommel
Magnetic separation
Anti-adhesion protection
trommel door (PE)
Profile belt
Hopper wear protection
Hydraulic outriggers
rubber track pads
Inner wire screens
Skid
Ripping knife
Processable materials
Thanks to innovative double trommel technology
Thanks to innovative Double trommel technology, our MULTI SCREEN® screening machines allow for the easy screening and recycling of various materials. Changeable wire screen linings enable optimal customization to individual requirements.
